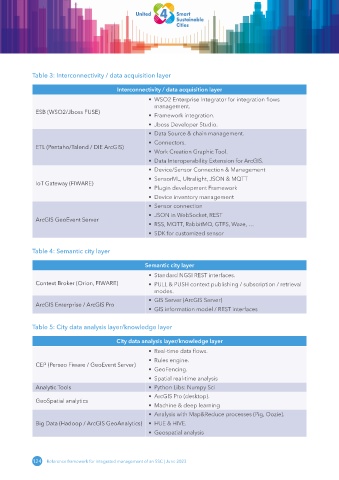

Table 3: Interconnectivity / data acquisition layer

Interconnectivity / data acquisition layer
• WSO2 Enterprise Integrator for integration flows
management.
ESB (WSO2/Jboss FUSE)
• Framework integration.
• Jboss Developer Studio.
• Data Source & chain management.
• Connectors.
ETL (Pentaho/Talend / DIE ArcGIS)
• Work Creation Graphic Tool.
• Data Interoperability Extension for ArcGIS.
• Device/Sensor Connection & Management
• SensorML, Ultralight, JSON & MQTT
IoT Gateway (FIWARE)
• Plugin development Framework
• Device inventory management
• Sensor connection
• JSON in WebSocket, REST
ArcGIS GeoEvent Server
• RSS, MQTT, RabbitMQ, GTFS, Waze, …
• SDK for customized sensor

Table 4: Semantic city layer

Semantic city layer

• Standard NGSI REST interfaces.
Context Broker (Orion, FIWARE) • PULL & PUSH context publishing / subscription / retrieval
modes.
• GIS Server (ArcGIS Server)
ArcGIS Enterprise / ArcGIS Pro
• GIS information model / REST interfaces

Table 5: City data analysis layer/knowledge layer

City data analysis layer/knowledge layer
• Real-time data flows.
• Rules engine.
CEP (Perseo Fiware / GeoEvent Server)
• GeoFencing.
• Spatial real-time analysis
Analytic Tools • Python Libs: Numpy Sci
• ArcGIS Pro (desktop).
GeoSpatial analytics
• Machine & deep learning
• Analysis with Map&Reduce processes (Pig, Oozie).
Big Data (Hadoop / ArcGIS GeoAnalytics) • HUE & HIVE.
• Geospatial analysis
