Page 100 - Reference framework for integrated management of an SSC - A U4SSC deliverable on city platforms
P. 100
The basic outline of components of the SOA architecture is:

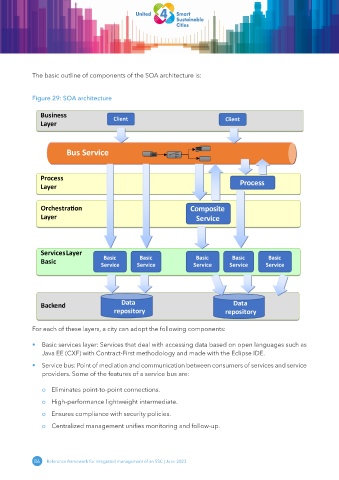

Figure 29: SOA architecture
For each of these layers, a city can adopt the following components:
• Basic services layer: Services that deal with accessing data based on open languages such as
Java EE (CXF) with Contract-First methodology and made with the Eclipse IDE.
• Service bus: Point of mediation and communication between consumers of services and service
providers. Some of the features of a service bus are:
o Eliminates point-to-point connections.
o High-performance lightweight intermediate.
o Ensures compliance with security policies.
o Centralized management unifies monitoring and follow-up.
86 Reference framework for integrated management of an SSC | June 2023
