APPENDIX II

           Description of the Ghana pilot campaign







           II.1 DATA COLLECTION METHOD                          The decision about the time-out condition needs ac-
                                                              tually to be made by a member of the observer team.
           For the Ghana pilot project, full manual acquisition of   This requires special element in the toolset used, e.g. an
           data, i.e. method a) as defined in clause 6.2, has been   alarm timer started with T1.
           selected, as it is the most generic one.
                                                              ■  NOTE: It is assumed that T6 and T7 can also be de-
                                                                rived from captured SMS on respective phones later.
           II.2 EVENT DEFINITION
                                                                It is however desirable to record these events in the
           Events have to be recorded with their respective time-  data logs too.
           stamps. Manual recording of those events requires a
           certain amount of time. This should not delay the DFS   Figure II-1 (based on Figure 4-2) shows the event flow
           process under test. This sets practical limits to the gran-  with the recording points T1 to T7 for manual time mea-
           ularity or number of events per DFS use case. Therefore,   surement. Events which belong to the positive result
           the extent of data will be limited to the set of practical   case are shown with green background color; negative
           KPI as defined in clause 7.                        events (indicating failure or time-out) have red back-
                                                              ground color.

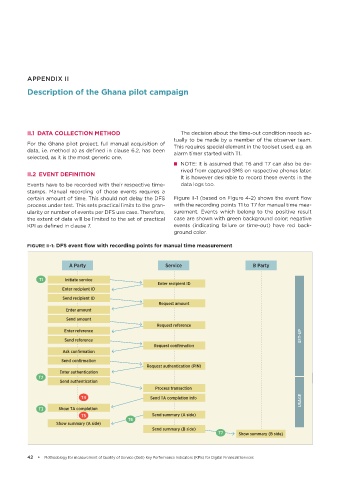

           FIGURE II-1: DFS event flow with recording points for manual time measurement



                         A Party                           Service                        B Party

               T1       Initiate service
                                                        Enter recipient ID
                       Enter recipient ID
                       Send recipient ID
                                                         Request amount
                        Enter amount
                        Send amount
                                                        Request reference
                        Enter reference
                        Send reference                                                                     SET-UP
                                                       Request confirmation
                       Ask confirmation
                       Send confirmation
                                                     Request authentication (PIN)
                      Enter authentication
               T2
                      Send authentication
                                                        Process transaction
                                                                                                           USAGE
                              T4                      Send TA completion info
               T3     Show TA completion
                              T5                      Send summary (A side)
                                              T6
                     Show summary (A side)
                                                      Send summary (B side)
                                                                              T7     Show summary (B side)
