With regard to data flows, the corresponding UML diagram (Figure 7) involves the local entities
(local stakeholders, SSC infrastructure and SSC dashboard for local monitoring) and the ICT
solutions repository, where the applications will be delivered and accessed by the community.
Corresponding requests and flows are simple, since ICT solutions contribute to the repositories.
However, they also collect data and notifications. The potential local SSC dashboard also interacts
with the rest of the data sources and analyses and depicts information, while it performs threat
analyses that can be submitted both to the Apps and to the national public health control centres.

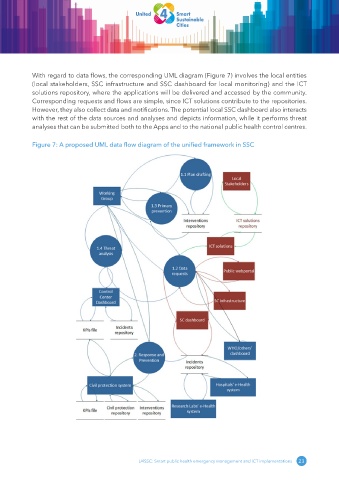

Figure 7: A proposed UML data flow diagram of the unified framework in SSC
