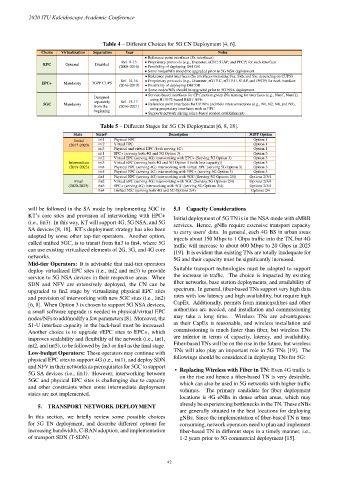

P. 100

2020 ITU Kaleidoscope Academic Conference




                                     Table 4 – Different Choices for 5G CN Deployment [4, 6].
                Choice  Virtualization  Separation  Year                      Notes
                                                    • Reference point interfaces (Sx interfaces)
                                            Rel. 8-13  • Proprietary protocols (e.g., Diameter, eGTP, S1AP, and PFCP) for each interface
                EPC     Optional  Disabled
                                           (2008-2016)  • Possibility of deploying DECOR
                                                    • Some nodes/NFs should be upgraded prior to 5G NSA deployment
                                                    • Reference point interfaces (Sx interfaces including Sxa, Sxb, and Sxc depending on CUPS)
                                           Rel. 14-16
                EPC+   Mandatory  3GPP CUPS  (2016-2019)  • Proprietary protocols (e.g., Diameter, eGTP-C, eGTP-U, S1AP, and PFCP) for each interface
                                                    • Possibility of deploying DECOR
                                                    • Some nodes/NFs should be upgraded prior to 5G NSA deployment
                                  Designed          • Service-based interfaces for CP function group (Nx naming for interfaces (e.g., Nsmf, Namf)),
                                                      using HTTP/2-based REST APIs
                                           Rel. 15-17
                5GC    Mandatory  separately  (2016-2021)  • Reference point interfaces for UP NFs and their interconnections (e.g., N1, N2, N4, and N9),
                                  from the
                                                      using proprietary interfaces such as EPC
                                  beginning         • Supports network slicing (slice-based session establishment)
                                    Table 5 – Different Stages for 5G CN Deployment [6, 8, 18].
                           State   State#                   Description                  3GPP Option
                           Initial  ini1  Physical EPC                                    Option 1
                         (2017-2020)  ini2  Virtual EPC                                   Option 1
                                    ini3  Physical and virtual EPC (both serving 4G)      Option 1
                                    int1  EPC+ (serving both 4G and 5G Option 3)          Option 3
                                    int2  Virtual EPC (serving 4G) interworking with EPC+ (Serving 5G Option 3)  Option 3
                         Intermediate  int3  Virtual EPC (serving both 4G and 5G Option 3 (with less capacity))  Option 3
                         (2019-2023)  int4  Physical EPC (serving 4G) interworking with virtual EPC (serving 5G Option 3)  Option 3
                                    int5  Physical EPC (serving 4G) interworking with EPC+ (serving 5G Option 3)  Option 3
                                    fin1  Physical EPC (serving 4G) interworking with 5GC (Serving 5G Options 2/4)  Options 2/3/4
                           Final    fin2  Virtual EPC (serving 4G) interworking with 5GC (Serving 5G Options 2/4)  Options 2/3/4
                         (2020-2025)  fin3  EPC+ (serving 4G) interworking with 5GC (serving 5G Options 2/4)  Options 2/3/4
                                    fin4  Unified 5GC (serving both 4G and 5G Options 2/4)  Options 2/4

           will be followed in the SA mode by implementing 5GC in  5.1 Capacity Considerations
           KT’s core sites and provision of interworking with EPC+  Initial deployment of 5G TN is in the NSA mode with eMBB
           (i.e., fin3). In this way, KT will support 4G, 5G NSA, and 5G  services. Hence, gNBs require extensive transport capacity
           SA devices [8, 18]. KT’s deployment strategy has also been  to carry users’ data. In general, each 4G BS in urban areas
           adopted by some other top-tier operators. Another option,  injects about 150 Mbps to 1 Gbps traffic into the TN, but 4G
           called unified 5GC, is to transit from fin3 to fin4, where 5G  traffic will increase to about 600 Mbps to 20 Gbps in 2025
           can use existing virtualized elements of 2G, 3G, and 4G core  [19]. It is evident that existing TNs are totally inadequate for
           networks.                                          5G and their capacity must be significantly increased.
           Mid-tier Operators: It is advisable that mid-tier operators
           deploy virtualized EPC sites (i.e., ini2 and ini3) to provide  Suitable transport technologies must be adopted to support
           service to 5G NSA devices in their respective areas. When  the increase in traffic. The choice is impacted by existing
           SDN and NFV are extensively deployed, the CN can be  fiber networks, base station deployments, and availability of
           upgraded to fin2 stage by virtualizing physical EPC sites  spectrum. In general, fiber-based TNs support very high data
           and provision of interworking with new 5GC sites (i.e., fin2)  rates with low latency and high availability, but require high
           [6, 8]. When Option 3 is chosen to support 5G NSA devices,  CapEx. Additionally, permits from municipalities and other
           a small software upgrade is needed in physical/virtual EPC  authorities are needed, and installation and commissioning
           nodes/NFs to add/modify a few parameters [8]. Moreover, the  may take a long time.  Wireless TNs are advantageous
           S1-U interface capacity in the back-haul must be increased.  as their CapEx is reasonable, and wireless installation and
           Another choice is to upgrade vEPC sites to EPC+, which  commissioning is much faster than fiber, but wireless TNs
           improves scalability and flexibility of the network (i.e., int1,  are inferior in terms of capacity, latency, and availability.
           int2, and int5), to be followed by fin3 or fin4 as the final stage.  Fiber-based TNs will be on the rise in the future, but wireless
           Low-budget Operators: These operators may continue with  TNs will also play an important role in 5G TNs [19]. The
           physical EPC sites to support 4G (i.e., ini1), and deploy SDN  followings should be considered in deploying TNs for 5G:
           and NFV in their networks as prerequisites for 5GC to support  • Replacing Wireless with Fiber in TN: Even 4G traffic is
           5G SA devices (i.e., fin1). However, interworking between  on the rise and hence a fiber-based TN is very desirable,
           5GC and physical EPC sites is challenging due to capacity  which can also be used in 5G networks with higher traffic
           and other constraints when some intermediate deployment  volumes. The primary candidate for fiber deployment
           states are not implemented.
                                                                locations is 4G eNBs in dense urban areas, which may
                                                                already be experiencing bottlenecks in the TN. These eNBs
              5. TRANSPORT NETWORK DEPLOYMENT
                                                                are generally situated in the best locations for deploying
           In this section, we briefly review some possible choices  gNBs. Since the implementation of fiber-based TN is time
           for 5G TN deployment, and describe different options for  consuming, network operators need to plan and implement
           increasing bandwidth, C-RAN adoption, and implementation  fiber-based TN in different steps in a timely manner, i.e.,
           of transport SDN (T-SDN).                            1-2 years prior to 5G commercial deployment [15].




                                                           – 42 –
