Page 16 - Methodology for measurement of Quality of Service (QoS) Key Performance Performance Indicators (KPIs) for Digital Financial Services
P. 16

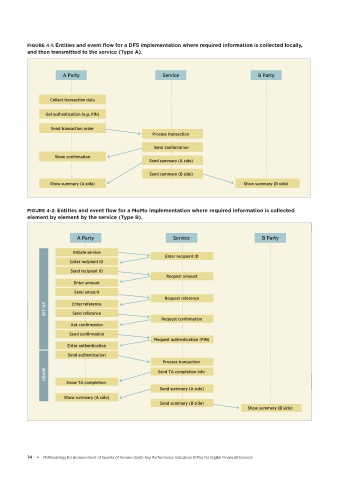

FIGURE 4-1: Entities and event flow for a DFS implementation where required information is collected locally,
           and then transmitted to the service (Type A).



                       A Party                            Service                           B Party



                   Collect transaction data

                 Get authentication (e.g. PIN)


                   Send transaction order
                                                       Process transaction

                                                       Send confirmation
                    Show confirmation
                                                     Send summary (A side)

                                                      Send summary (B side)
                   Show summary (A side)                                               Show summary (B side)



           FIGURE 4-2: Entities and event flow for a MoMo implementation where required information is collected
           element by element by the service (Type B).


                            A Party                           Service                        B Party


                           Initiate service
                                                           Enter recipient ID
                          Enter recipient ID
                          Send recipient ID
                                                           Request amount
                           Enter amount
                           Send amount
                                                           Request reference
                 SET-UP   Enter reference
                          Send reference
                                                          Request confirmation
                          Ask confirmation
                         Send confirmation
                                                       Request authentication (PIN)
                         Enter authentication
                         Send authentication
                                                          Process transaction
                 USAGE                                  Send TA completion info

                        Show TA completion
                                                         Send summary (A side)
                        Show summary (A side)
                                                         Send summary (B side)
                                                                                        Show summary (B side)
