Page 902 - Cloud computing: From paradigm to operation
P. 902

5                                            Intercloud and interoperability

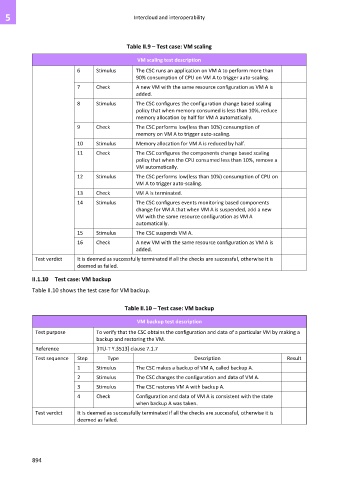

                                              Table II.9 – Test case: VM scaling

                                                 VM scaling test description
                            6      Stimulus      The CSC runs an application on VM A to perform more than
                                                 90% consumption of CPU on VM A to trigger auto-scaling.
                            7      Check         A new VM with the same resource configuration as VM A is
                                                 added.
                            8      Stimulus      The CSC configures the configuration change based scaling
                                                 policy that when memory consumed is less than 10%, reduce
                                                 memory allocation by half for VM A automatically.
                            9      Check         The CSC performs low(less than 10%) consumption of
                                                 memory on VM A to trigger auto-scaling.
                            10     Stimulus      Memory allocation for VM A is reduced by half.
                            11     Check         The CSC configures the components change based scaling
                                                 policy that when the CPU consumed less than 10%, remove a
                                                 VM automatically.
                            12     Stimulus      The CSC performs low(less than 10%) consumption of CPU on
                                                 VM A to trigger auto-scaling.
                            13     Check         VM A is terminated.
                            14     Stimulus      The CSC configures events monitoring based components
                                                 change for VM A that when VM A is suspended, add a new
                                                 VM with the same resource configuration as VM A
                                                 automatically.
                            15     Stimulus      The CSC suspends VM A.

                            16     Check         A new VM with the same resource configuration as VM A is
                                                 added.
             Test verdict   It is deemed as successfully terminated if all the checks are successful, otherwise it is
                            deemed as failed.

            II.1.10  Test case: VM backup
            Table II.10 shows the test case for VM backup.


                                             Table II.10 – Test case: VM backup

                                                 VM backup test description
             Test purpose          To verify that the CSC obtains the configuration and data of a particular VM by making a
                                   backup and restoring the VM.
             Reference             [ITU-T Y.3513] clause 7.1.7
             Test sequence   Step      Type                          Description                      Result
                            1      Stimulus      The CSC makes a backup of VM A, called backup A.
                            2      Stimulus      The CSC changes the configuration and data of VM A.
                            3      Stimulus      The CSC restores VM A with backup A.
                            4      Check         Configuration and data of VM A is consistent with the state
                                                 when backup A was taken.
             Test verdict   It is deemed as successfully terminated if all the checks are successful, otherwise it is
                            deemed as failed.






            894
