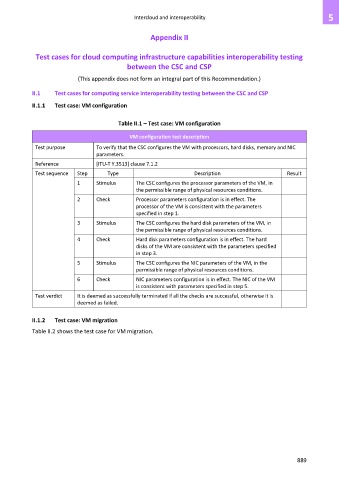

Page 897 - Cloud computing: From paradigm to operation
P. 897

Intercloud and interoperability                                     5


                                                      Appendix II

              Test cases for cloud computing infrastructure capabilities interoperability testing
                                              between the CSC and CSP

                            (This appendix does not form an integral part of this Recommendation.)

            II.1    Test cases for computing service interoperability testing between the CSC and CSP
            II.1.1   Test case: VM configuration


                                           Table II.1 – Test case: VM configuration

                                               VM configuration test description

             Test purpose          To verify that the CSC configures the VM with processors, hard disks, memory and NIC
                                   parameters.
             Reference             [ITU-T Y.3513] clause 7.1.2

             Test sequence   Step      Type                          Description                      Result
                            1      Stimulus      The CSC configures the processor parameters of the VM, in
                                                 the permissible range of physical resources conditions.
                            2      Check         Processor parameters configuration is in effect. The
                                                 processor of the VM is consistent with the parameters
                                                 specified in step 1.
                            3      Stimulus      The CSC configures the hard disk parameters of the VM, in
                                                 the permissible range of physical resources conditions.
                            4      Check         Hard disk parameters configuration is in effect. The hard
                                                 disks of the VM are consistent with the parameters specified
                                                 in step 3.
                            5      Stimulus      The CSC configures the NIC parameters of the VM, in the
                                                 permissible range of physical resources conditions.
                            6      Check         NIC parameters configuration is in effect. The NIC of the VM
                                                 is consistent with parameters specified in step 5.
             Test verdict   It is deemed as successfully terminated if all the checks are successful, otherwise it is
                            deemed as failed.

            II.1.2   Test case: VM migration
            Table II.2 shows the test case for VM migration.

























                                                                                                         889
