Page 905 - Cloud computing: From paradigm to operation

Intercloud and interoperability 5

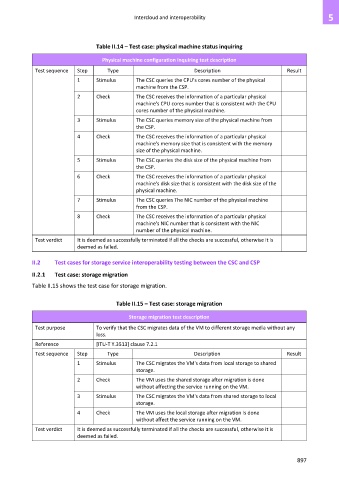

Table II.14 – Test case: physical machine status inquiring

Physical machine configuration inquiring test description
Test sequence Step Type Description Result
1 Stimulus The CSC queries the CPU’s cores number of the physical
machine from the CSP.

2 Check The CSC receives the information of a particular physical
machine's CPU cores number that is consistent with the CPU
cores number of the physical machine.
3 Stimulus The CSC queries memory size of the physical machine from
the CSP.
4 Check The CSC receives the information of a particular physical
machine's memory size that is consistent with the memory
size of the physical machine.
5 Stimulus The CSC queries the disk size of the physical machine from
the CSP.
6 Check The CSC receives the information of a particular physical
machine's disk size that is consistent with the disk size of the
physical machine.
7 Stimulus The CSC queries The NIC number of the physical machine
from the CSP.
8 Check The CSC receives the information of a particular physical
machine's NIC number that is consistent with the NIC
number of the physical machine.
Test verdict It is deemed as successfully terminated if all the checks are successful, otherwise it is
deemed as failed.

II.2 Test cases for storage service interoperability testing between the CSC and CSP

II.2.1 Test case: storage migration
Table II.15 shows the test case for storage migration.

Table II.15 – Test case: storage migration

Storage migration test description
Test purpose To verify that the CSC migrates data of the VM to different storage media without any
loss.
Reference [ITU-T Y.3513] clause 7.2.1
Test sequence Step Type Description Result
1 Stimulus The CSC migrates the VM's data from local storage to shared
storage.
2 Check The VM uses the shared storage after migration is done
without affecting the service running on the VM.
3 Stimulus The CSC migrates the VM's data from shared storage to local
storage.
4 Check The VM uses the local storage after migration is done
without affect the service running on the VM.

Test verdict It is deemed as successfully terminated if all the checks are successful, otherwise it is
deemed as failed.

897
