Page 474 - Cloud computing: From paradigm to operation
P. 474

2                                            Cloud Computing management


            With the convergence of information technology (IT) and communications technology (CT) industries, cloud
            computing  is  being  adopted  in  telecommunication  infrastructures. Telecommunication  operators  deliver
            cloud services, and also apply cloud computing technologies for the optimization of their telecommunication
            service platforms and telecommunication support systems.

            [ITU-T M.3070] has defined a service management interface (SMI)-based common model for end-to-end
            (E2E)  cloud  computing  management,  which  is  described  in  Figure  6-1.  In  this  model,  a  cloud-aware
            telecommunication  management  system  can  manage  cloud-based  facilities  through  the  management
            interface "I1" which can correspond to a set of SMIs.

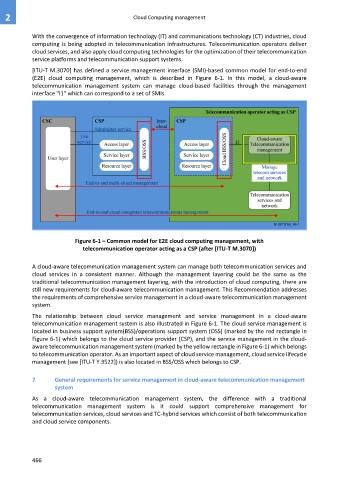

                           Figure 6-1 – Common model for E2E cloud computing management, with
                              telecommunication operator acting as a CSP (after [ITU-T M.3070])


            A cloud-aware telecommunication management system can manage both telecommunication services and
            cloud  services  in  a  consistent  manner.  Although  the  management  layering  could  be  the  same  as  the
            traditional telecommunication management layering, with the introduction of cloud computing, there are
            still new requirements for cloud-aware telecommunication management. This Recommendation addresses
            the requirements of comprehensive service management in a cloud-aware telecommunication management
            system.

            The  relationship  between  cloud  service  management  and  service  management  in  a  cloud-aware
            telecommunication management system is also illustrated in Figure 6-1. The cloud service management is
            located in business support system(BSS)/operations support system (OSS) (marked by the red rectangle in
            Figure 6-1) which belongs to the cloud service provider (CSP), and the service management in the cloud-
            aware telecommunication management system (marked by the yellow rectangle in Figure 6-1) which belongs
            to telecommunication operator. As an important aspect of cloud service management, cloud service lifecycle
            management (see [ITU-T Y.3522]) is also located in BSS/OSS which belongs to CSP.


            7       General requirements for service management in cloud-aware telecommunication management
                    system

            As  a  cloud-aware  telecommunication  management  system,  the  difference  with  a  traditional
            telecommunication  management  system  is  it  could  support  comprehensive  management  for
            telecommunication services, cloud services and TC-hybrid services which consist of both telecommunication
            and cloud service components.
