Page 200 - Cloud computing: From paradigm to operation

1 Framework and requirements for cloud computing

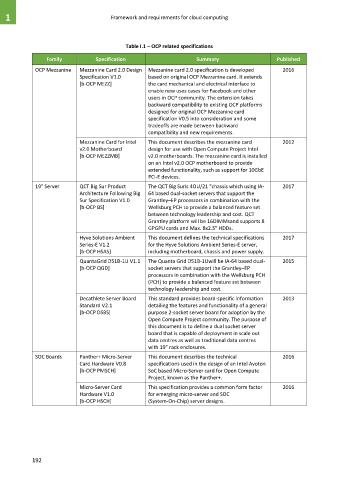

Table I.1 – OCP related specifications
Family Specification Summary Published

OCP Mezzanine Mezzanine Card 2.0 Design Mezzanine card 2.0 specification is developed 2016
Specification V1.0 based on original OCP Mezzanine card. It extends
[b-OCP MEZZ] the card mechanical and electrical interface to
enable new uses cases for Facebook and other
users in OCP community. The extension takes
backward compatibility to existing OCP platforms
designed for original OCP Mezzanine card
specification V0.5 into consideration and some
tradeoffs are made between backward
compatibility and new requirements.

Mezzanine Card for Intel This document describes the mezzanine card 2012
v2.0 Motherboard design for use with Open Compute Project Intel
[b-OCP MEZZMB] v2.0 motherboards. The mezzanine card is installed
on an Intel v2.0 OCP motherboard to provide
extended functionality, such as support for 10GbE
PCI-E devices.
19" Server QCT Big Sur Product The QCT Big Suris 4OU/21 "chassis which using IA- 2017
Architecture Following Big 64 based dual-socket servers that support the
Sur Specification V1.0 Grantley–EP processors in combination with the
[b-OCP BS] Wellsburg PCH to provide a balanced feature set
between technology leadership and cost. QCT
Grantley platform will be 16DIMMsand supports 8
GPGPU cards and Max. 8x2.5" HDDs.
Hyve Solutions Ambient This document defines the technical specifications 2017
Series-E V1.2 for the Hyve Solutions Ambient Series-E server,
[b-OCP HSAS] including motherboard, chassis and power supply.
QuantaGrid D51B-1U V1.1 The Quanta Grid D51B-1Uwill be IA-64 based dual- 2015
[b-OCP QGD] socket servers that support the Grantley–EP
processors in combination with the Wellsburg PCH
(PCH) to provide a balanced feature set between
technology leadership and cost.
Decathlete Server Board This standard provides board-specific information 2013
Standard V2.1 detailing the features and functionality of a general
[b-OCP DSBS] purpose 2-socket server board for adoption by the
Open Compute Project community. The purpose of
this document is to define a dual socket server
board that is capable of deployment in scale out
data centres as well as traditional data centres
with 19” rack enclosures.
SOC Boards Panther+ Micro-Server This document describes the technical 2016
Card Hardware V0.8 specifications used in the design of an Intel Avoton
[b-OCP PMSCH] SoC based Micro-Server card for Open Compute
Project, known as the Panther+.
Micro-Server Card This specification provides a common form factor 2016
Hardware V1.0 for emerging micro-server and SOC
[b-OCP HSCH] (System-On-Chip) server designs.

192
