Framework and requirements for cloud computing 1

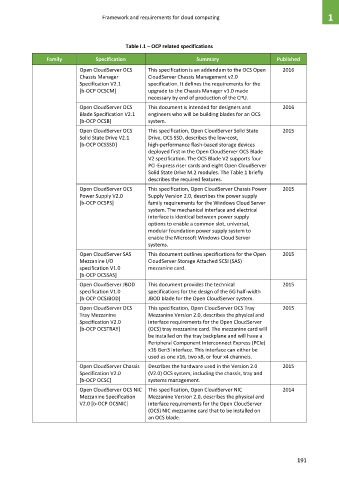

Table I.1 – OCP related specifications
Family Specification Summary Published

Open CloudServer OCS This specification is an addendum to the OCS Open 2016
Chassis Manager CloudServer Chassis Management v2.0
Specification V2.1 specification. It defines the requirements for the
[b-OCP OCSCM] upgrade to the Chassis Manager v1.0 made
necessary by end of production of the CPU.
Open CloudServer OCS This document is intended for designers and 2016
Blade Specification V2.1 engineers who will be building blades for an OCS
[b-OCP OCSB] system.
Open CloudServer OCS This specification, Open CloudServer Solid State 2015
Solid State Drive V2.1 Drive, OCS SSD, describes the low-cost,
[b-OCP OCSSSD] high-performance flash-based storage devices
deployed first in the Open CloudServer OCS Blade
V2 specification. The OCS Blade V2 supports four
PCI-Express riser cards and eight Open CloudServer
Solid State Drive M.2 modules. The Table 1 briefly
describes the required features.
Open CloudServer OCS This specification, Open CloudServer Chassis Power 2015
Power Supply V2.0 Supply Version 2.0, describes the power supply
[b-OCP OCSPS] family requirements for the Windows Cloud Server
system. The mechanical interface and electrical
interface is identical between power supply
options to enable a common slot, universal,
modular foundation power supply system to
enable the Microsoft Windows Cloud Server
systems.
Open CloudServer SAS This document outlines specifications for the Open 2015
Mezzanine I/O CloudServer Storage Attached SCSI (SAS)
specification V1.0 mezzanine card.
[b-OCP OCSSAS]
Open CloudServer JBOD This document provides the technical 2015
specification V1.0 specifications for the design of the 6G half-width
[b-OCP OCSJBOD] JBOD blade for the Open CloudServer system.
Open CloudServer OCS This specification, Open CloudServer OCS Tray 2015
Tray Mezzanine Mezzanine Version 2.0, describes the physical and
Specification V2.0 interface requirements for the Open CloudServer
[b-OCP OCSTRAY] (OCS) tray mezzanine card. The mezzanine card will
be installed on the tray backplane and will have a
Peripheral Component Interconnect Express (PCIe)
x16 Gen3 interface. This interface can either be
used as one x16, two x8, or four x4 channels.
Open CloudServer Chassis Describes the hardware used in the Version 2.0 2015
Specification V2.0 (V2.0) OCS system, including the chassis, tray and
[b-OCP OCSC] systems management.
Open CloudServer OCS NIC This specification, Open CloudServer NIC 2014
Mezzanine Specification Mezzanine Version 2.0, describes the physical and
V2.0 [b-OCP OCSNIC] interface requirements for the Open CloudServer
(OCS) NIC mezzanine card that to be installed on
an OCS blade.

191
