Page 176 - Cloud computing: From paradigm to operation
P. 176

1                                    Framework and requirements for cloud computing

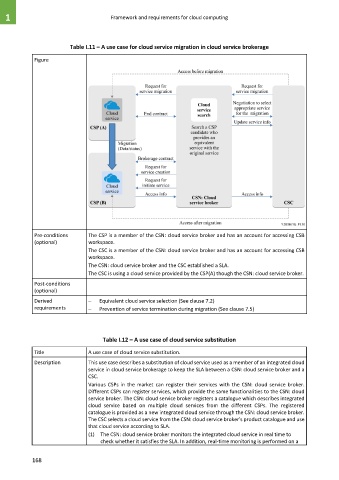

                          Table I.11 – A use case for cloud service migration in cloud service brokerage

             Figure



































             Pre-conditions     The CSP is a member of the CSN: cloud service broker and has an account for accessing CSB
             (optional)         workspace.
                                The CSC is a member of the CSN: cloud service broker and has an account for accessing CSB
                                workspace.
                                The CSN: cloud service broker and the CSC established a SLA.
                                The CSC is using a cloud service provided by the CSP(A) though the CSN: cloud service broker.

             Post-conditions
             (optional)
             Derived            –   Equivalent cloud service selection (See clause 7.2)
             requirements       –   Prevention of service termination during migration (See clause 7.5)




                                     Table I.12 – A use case of cloud service substitution

             Title              A use case of cloud service substitution.
             Description        This use case describes a substitution of cloud service used as a member of an integrated cloud
                                service in cloud service brokerage to keep the SLA between a CSN: cloud service broker and a
                                CSC.
                                Various CSPs in the market can register their services with the CSN: cloud service broker.
                                Different CSPs can register services, which provide the same functionalities to the CSN: cloud
                                service broker. The CSN: cloud service broker registers a catalogue which describes integrated
                                cloud  service  based  on  multiple  cloud  services  from  the  different  CSPs.  The  registered
                                catalogue is provided as a new integrated cloud service through the CSN: cloud service broker.
                                The CSC selects a cloud service from the CSN: cloud service broker's product catalogue and use
                                that cloud service according to SLA.
                                (1)  The CSN: cloud service broker monitors the integrated cloud service in real time to
                                    check whether it satisfies the SLA. In addition, real-time monitoring is performed on a


            168
