1                                    Framework and requirements for cloud computing

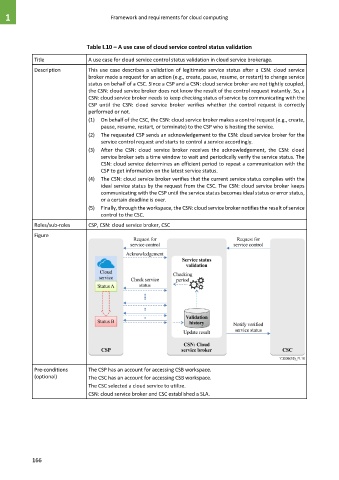

                                Table I.10 – A use case of cloud service control status validation
             Title              A use case for cloud service control status validation in cloud service brokerage.

             Description        This use case describes a validation of legitimate service  status after a CSN: cloud service
                                broker made a request for an action (e.g., create, pause, resume, or restart) to change service
                                status on behalf of a CSC. Since a CSP and a CSN: cloud service broker are not tightly coupled,
                                the CSN: cloud service broker does not know the result of the control request instantly. So, a
                                CSN: cloud service broker needs to keep checking status of service by communicating with the
                                CSP  until  the  CSN:  cloud  service  broker  verifies  whether  the  control  request  is  correctly
                                performed or not.
                                (1)  On behalf of the CSC, the CSN: cloud service broker makes a control request (e.g., create,
                                    pause, resume, restart, or terminate) to the CSP who is hosting the service.
                                (2)  The requested CSP sends an acknowledgement to the CSN: cloud service broker for the
                                    service control request and starts to control a service accordingly.
                                (3)  After  the  CSN:  cloud  service  broker  receives  the  acknowledgement,  the  CSN:  cloud
                                    service broker sets a time window to wait and periodically verify the service status. The
                                    CSN: cloud service determines an efficient period to repeat a communication with the
                                    CSP to get information on the latest service status.
                                (4)  The CSN: cloud service broker verifies that the current service status complies with the
                                    ideal service status by the request from the CSC. The CSN: cloud service broker keeps
                                    communicating with the CSP until the service status becomes ideal status or error status,
                                    or a certain deadline is over.
                                (5)  Finally, through the workspace, the CSN: cloud service broker notifies the result of service
                                    control to the CSC.

             Roles/sub-roles    CSP, CSN: cloud service broker, CSC
             Figure


























             Pre-conditions     The CSP has an account for accessing CSB workspace.
             (optional)         The CSC has an account for accessing CSB workspace.
                                The CSC selected a cloud service to utilize.
                                CSN: cloud service broker and CSC established a SLA.
