Framework and requirements for cloud computing                              1

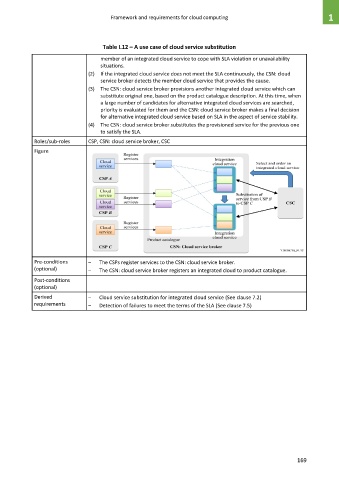

                                     Table I.12 – A use case of cloud service substitution
                                    member of an integrated cloud service to cope with SLA violation or unavailability
                                    situations.
                                (2)  If the integrated cloud service does not meet the SLA continuously, the CSN: cloud
                                    service broker detects the member cloud service that provides the cause.
                                (3)  The CSN: cloud service broker provisions another integrated cloud service which can
                                    substitute original one, based on the product catalogue description. At this time, when
                                    a large number of candidates for alternative integrated cloud services are searched,
                                    priority is evaluated for them and the CSN: cloud service broker makes a final decision
                                    for alternative integrated cloud service based on SLA in the aspect of service stability.
                                (4)  The CSN: cloud service broker substitutes the provisioned service for the previous one
                                    to satisfy the SLA.
             Roles/sub-roles    CSP, CSN: cloud service broker, CSC

             Figure





















             Pre-conditions     –   The CSPs register services to the CSN: cloud service broker.
             (optional)         –   The CSN: cloud service broker registers an integrated cloud to product catalogue.

             Post-conditions
             (optional)
             Derived            –   Cloud service substitution for integrated cloud service (See clause 7.2)
             requirements       –   Detection of failures to meet the terms of the SLA (See clause 7.5)































                                                                                                         169
