1                                    Framework and requirements for cloud computing


                                                      Appendix II


                               Relationship between the logical components and
                                   the activities of cloud service broker for CSB

                            (This appendix does not form an integral part of this Recommendation.)


            Activities of cloud service broker for CSB consist of (1) acquire and assess customers, (2) assess marketplace,
            (3) set up legal agreement, (4) assist CSC for accessing service and (5) check and control service status.

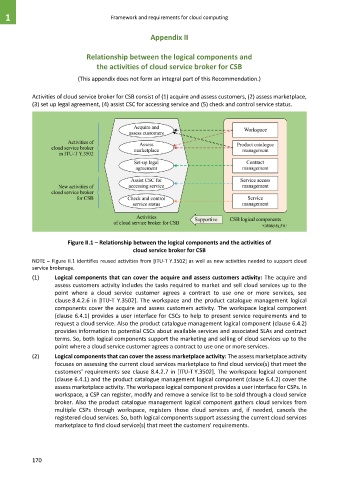

                         Figure II.1 – Relationship between the logical components and the activities of
                                                cloud service broker for CSB

            NOTE – Figure II.1 identifies reused activities from [ITU-T Y.3502] as well as new activities needed to support cloud
            service brokerage.
            (1)     Logical components that can cover the acquire and assess customers activity: The acquire and
                    assess customers activity includes the tasks required to market and sell cloud services up to the
                    point  where  a  cloud  service  customer  agrees  a  contract  to  use  one  or  more  services,  see
                    clause 8.4.2.6  in  [ITU-T  Y.3502]. The workspace  and  the  product catalogue management  logical
                    components cover the acquire and assess customers activity. The workspace logical component
                    (clause 6.4.1) provides a user interface for CSCs to help to present service requirements and to
                    request a cloud service. Also the product catalogue management logical component (clause 6.4.2)
                    provides information to potential CSCs about available services and associated SLAs and contract
                    terms. So, both logical components support the marketing and selling of cloud services up to the
                    point where a cloud service customer agrees a contract to use one or more services.

            (2)     Logical components that can cover the assess marketplace activity: The assess marketplace activity
                    focuses on assessing the current cloud services marketplace to find cloud service(s) that meet the
                    customers' requirements see clause 8.4.2.7 in [ITU-T Y.3502]. The workspace logical component
                    (clause 6.4.1) and the product catalogue management logical component (clause 6.4.2) cover the
                    assess marketplace activity. The workspace logical component provides a user interface for CSPs. In
                    workspace, a CSP can register, modify and remove a service list to be sold through a cloud service
                    broker. Also the product catalogue management logical component gathers cloud services from
                    multiple  CSPs  through  workspace,  registers  those  cloud  services  and,  if  needed,  cancels  the
                    registered cloud services. So, both logical components support assessing the current cloud services
                    marketplace to find cloud service(s) that meet the customers' requirements.
