Framework and requirements for cloud computing                              1

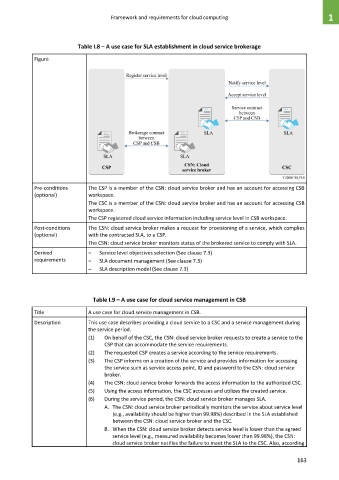

                            Table I.8 – A use case for SLA establishment in cloud service brokerage
             Figure

























             Pre-conditions     The CSP is a member of the CSN: cloud service broker and has an account for accessing CSB
             (optional)         workspace.
                                The CSC is a member of the CSN: cloud service broker and has an account for accessing CSB
                                workspace.
                                The CSP registered cloud service information including service level in CSB workspace.
             Post-conditions    The CSN: cloud service broker makes a request for provisioning of a service, which complies
             (optional)         with the contracted SLA, to a CSP.
                                The CSN: cloud service broker monitors status of the brokered service to comply with SLA.
             Derived            –   Service level objectives selection (See clause 7.3)
             requirements       –   SLA document management (See clause 7.3)
                                –   SLA description model (See clause 7.3)




                                  Table I.9 – A use case for cloud service management in CSB

             Title              A use case for cloud service management in CSB.
             Description        This use case describes providing a cloud service to a CSC and a service management during
                                the service period.
                                (1)   On behalf of the CSC, the CSN: cloud service broker requests to create a service to the
                                      CSP that can accommodate the service requirements.
                                (2)   The requested CSP creates a service according to the service requirements.
                                (3)   The CSP informs on a creation of the service and provides information for accessing
                                      the service such as service access point, ID and password to the CSN: cloud service
                                      broker.
                                (4)   The CSN: cloud service broker forwards the access information to the authorized CSC.
                                (5)   Using the access information, the CSC accesses and utilizes the created service.
                                (6)   During the service period, the CSN: cloud service broker manages SLA.
                                      A.  The CSN: cloud service broker periodically monitors the service about service level
                                         (e.g., availability should be higher than 99.98%) described in the SLA established
                                         between the CSN: cloud service broker and the CSC.
                                      B.  When the CSN: cloud service broker detects service level is lower than the agreed
                                         service level (e.g., measured availability becomes lower than 99.98%), the CSN:
                                         cloud service broker notifies the failure to meet the SLA to the CSC. Also, according

                                                                                                         163
