Page 349 - Cloud computing: From paradigm to operation

Framework and requirements for cloud computing 1

Table I.6 – Big data based mobile network (3G/4G) billing detail query
Post-conditions – CSP:BDAP can have functionalities for providing analysis result of network users' CDR data
to the CSC:BDSU.
– CSC:BDSU could quickly query the detailed billing record for each internet access based on
the analysis result.

Derived – Data collection (refer to clause 8.1, requirement 3)
requirements – Data storage (refer to clause 8.3, requirement 4)
– Data analysis (refer to clause 8.4, requirement 8)
– Data application (refer to clause 8.5, requirement 2 )

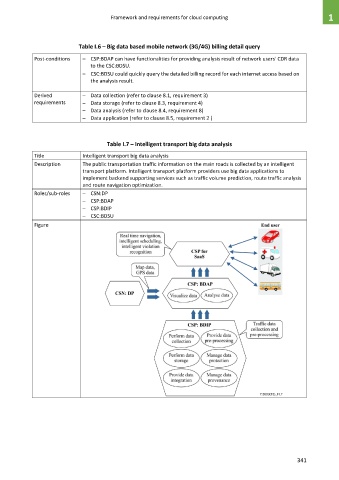

Table I.7 – Intelligent transport big data analysis

Title Intelligent transport big data analysis
Description The public transportation traffic information on the main roads is collected by an intelligent
transport platform. Intelligent transport platform providers use big data applications to
implement backend supporting services such as traffic volume prediction, route traffic analysis
and route navigation optimization.
Roles/sub-roles – CSN:DP
– CSP:BDAP
– CSP:BDIP
– CSC:BDSU
Figure

341
