1 Framework and requirements for cloud computing

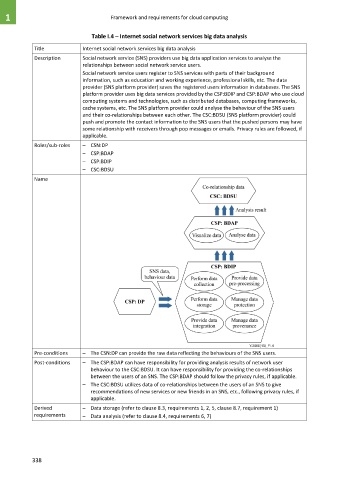

Table I.4 – Internet social network services big data analysis

Title Internet social network services big data analysis
Description Social network service (SNS) providers use big data application services to analyse the
relationships between social network service users.
Social network service users register to SNS services with parts of their background
information, such as education and working experience, professional skills, etc. The data
provider (SNS platform provider) saves the registered users information in databases. The SNS
platform provider uses big data services provided by the CSP:BDIP and CSP:BDAP who use cloud
computing systems and technologies, such as distributed databases, computing frameworks,
cache systems, etc. The SNS platform provider could analyse the behaviour of the SNS users
and their co-relationships between each other. The CSC:BDSU (SNS platform provider) could
push and promote the contact information to the SNS users that the pushed persons may have
some relationship with receivers through pop messages or emails. Privacy rules are followed, if
applicable.
Roles/sub-roles – CSN:DP
– CSP:BDAP
– CSP:BDIP
– CSC:BDSU
Name

Pre-conditions – The CSN:DP can provide the raw data reflecting the behaviours of the SNS users.
Post-conditions – The CSP:BDAP can have responsibility for providing analysis results of network user
behaviour to the CSC:BDSU. It can have responsibility for providing the co-relationships
between the users of an SNS. The CSP:BDAP should follow the privacy rules, if applicable.
– The CSC:BDSU utilizes data of co-relationships between the users of an SNS to give
recommendations of new services or new friends in an SNS, etc., following privacy rules, if
applicable.
Derived – Data storage (refer to clause 8.3, requirements 1, 2, 5, clause 8.7, requirement 1)
requirements – Data analysis (refer to clause 8.4, requirements 6, 7)
