Page 348 - Cloud computing: From paradigm to operation

1 Framework and requirements for cloud computing

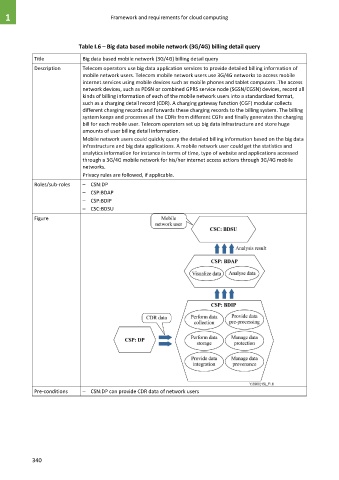

Table I.6 – Big data based mobile network (3G/4G) billing detail query
Title Big data based mobile network (3G/4G) billing detail query
Description Telecom operators use big data application services to provide detailed billing information of
mobile network users. Telecom mobile network users use 3G/4G networks to access mobile
internet services using mobile devices such as mobile phones and tablet computers .The access
network devices, such as PDSN or combined GPRS service node (SGSN/CGSN) devices, record all
kinds of billing information of each of the mobile network users into a standardized format,
such as a charging detail record (CDR). A charging gateway function (CGF) modular collects
different charging records and forwards these charging records to the billing system. The billing
system keeps and processes all the CDRs from different CGFs and finally generates the charging
bill for each mobile user. Telecom operators set up big data infrastructure and store huge
amounts of user billing detail information.
Mobile network users could quickly query the detailed billing information based on the big data
infrastructure and big data applications. A mobile network user could get the statistics and
analytics information for instance in terms of time, type of website and applications accessed
through a 3G/4G mobile network for his/her internet access actions through 3G/4G mobile
networks.
Privacy rules are followed, if applicable.
Roles/sub-roles – CSN:DP
– CSP:BDAP
– CSP:BDIP
– CSC:BDSU
Figure

Pre-conditions – CSN:DP can provide CDR data of network users

340
