Framework and requirements for cloud computing                              1

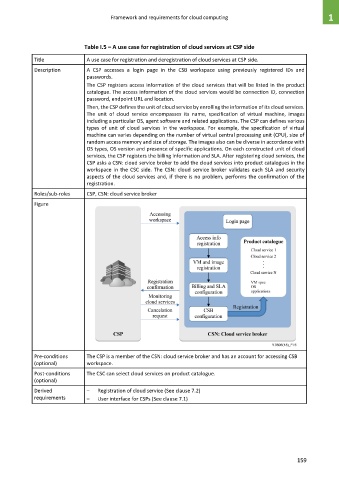

                               Table I.5 – A use case for registration of cloud services at CSP side
             Title             A use case for registration and deregistration of cloud services at CSP side.

             Description       A  CSP  accesses  a  login  page  in  the  CSB  workspace  using  previously  registered  IDs  and
                               passwords.
                               The CSP registers access information of the cloud services that will be listed in the product
                               catalogue. The access information of the cloud services would be connection ID, connection
                               password, endpoint URL and location.
                               Then, the CSP defines the unit of cloud service by enrolling the information of its cloud services.
                               The  unit  of  cloud  service  encompasses  its  name,  specification  of  virtual  machine,  images
                               including a particular OS, agent software and related applications. The CSP can defines various
                               types  of  unit  of  cloud  services  in  the  workspace.  For  example,  the  specification  of  virtual
                               machine can varies depending on the number of virtual central processing unit (CPU), size of
                               random access memory and size of storage. The images also can be diverse in accordance with
                               OS types, OS version and presence of specific applications. On each constructed unit of cloud
                               services, the CSP registers the billing information and SLA. After registering cloud services, the
                               CSP asks a CSN: cloud service broker to add the cloud services into product catalogues in the
                               workspace  in  the  CSC  side.  The  CSN:  cloud  service  broker  validates  each  SLA  and  security
                               aspects of the cloud services and, if there is no problem, performs the confirmation of the
                               registration.
             Roles/sub-roles   CSP, CSN: cloud service broker
             Figure































             Pre-conditions    The CSP is a member of the CSN: cloud service broker and has an account for accessing CSB
             (optional)        workspace.
             Post-conditions   The CSC can select cloud services on product catalogue.
             (optional)
             Derived           –   Registration of cloud service (See clause 7.2)
             requirements      –   User interface for CSPs (See clause 7.1)
