1 Framework and requirements for cloud computing

Pre-conditions
(optional)

Post-conditions
(optional)
Derived – Clause 8.3 requirement (10)
requirements – Clause 8.3 requirement (6)
– Clause 8.2 requirement (4)

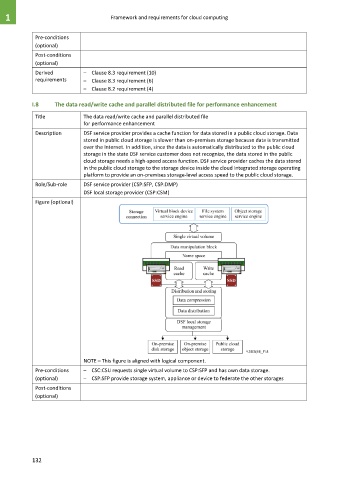

I.8 The data read/write cache and parallel distributed file for performance enhancement

Title The data read/write cache and parallel distributed file
for performance enhancement

Description DSF service provider provides a cache function for data stored in a public cloud storage. Data
stored in public cloud storage is slower than on-premises storage because data is transmitted
over the Internet. In addition, since the data is automatically distributed to the public cloud
storage in the state DSF service customer does not recognize, the data stored in the public
cloud storage needs a high-speed access function. DSF service provider caches the data stored
in the public cloud storage to the storage device inside the cloud integrated storage operating
platform to provide an on-premises storage-level access speed to the public cloud storage.
Role/Sub-role DSF service provider (CSP:SFP, CSP:DMP)
DSF local storage provider (CSP:CSM)
Figure (optional)

NOTE – This figure is aligned with logical component.
Pre-conditions – CSC:CSU requests single virtual volume to CSP:SFP and has own data storage.
(optional) – CSP:SFP provide storage system, appliance or device to federate the other storages
Post-conditions
(optional)
