Page 145 - Cloud computing: From paradigm to operation

Framework and requirements for cloud computing 1

I.12 Registration of data storage for federation service

Title Registration of data storage for federation service
Description A DSF service customer requests data storage service from a DSF service provider. For the data
storage registration, DSF service customer logs in through the already registered authentication
information and registers the cloud storage and on-premises storage to use. The registration
process is provided by DSF service provider through the graphical user interface (GUI).
DSF service customer registers the service name, storage specification, data storage service
protocol and cloud storage name and cloud storage type through the GUI for setting virtual data
storage and creates the virtual data storage.
Role/Sub-role DSF service customer (CSC:CSU)
DSF service provider (CSP:SFP/DMP)
Figure
(optional)

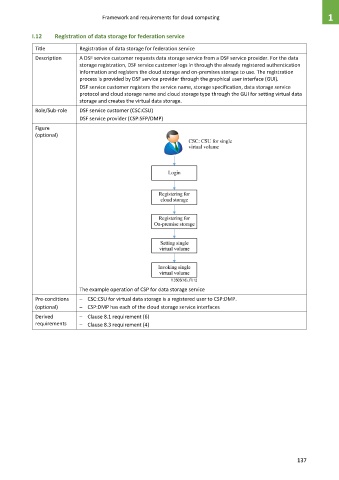

The example operation of CSP for data storage service
Pre-conditions – CSC:CSU for virtual data storage is a registered user to CSP:DMP.
(optional) – CSP:DMP has each of the cloud storage service interfaces
Derived – Clause 8.1 requirement (6)
requirements – Clause 8.3 requirement (4)

137
