Framework and requirements for cloud computing                                 1

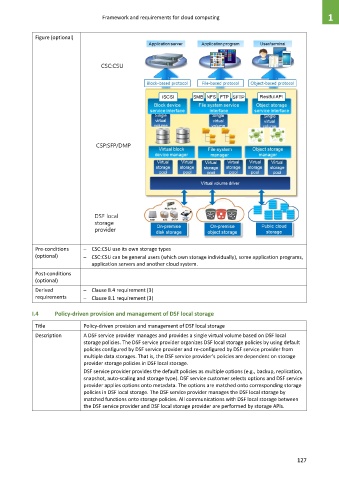

             Figure (optional)











































             Pre-conditions   –  CSC:CSU use its own storage types
             (optional)       –  CSC:CSU can be general users (which own storage individually), some application programs,
                                 application servers and another cloud system.
             Post-conditions
             (optional)
             Derived          –  Clause 8.4 requirement (3)
             requirements     –  Clause 8.1 requirement (3)

            I.4     Policy-driven provision and management of DSF local storage

             Title            Policy-driven provision and management of DSF local storage
             Description      A DSF service provider manages and provides a single virtual volume based on DSF local
                              storage policies. The DSF service provider organizes DSF local storage policies by using default
                              policies configured by DSF service provider and re-configured by DSF service provider from
                              multiple data storages. That is, the DSF service provider's policies are dependent on storage
                              provider storage policies in DSF local storage.
                              DSF service provider provides the default policies as multiple options (e.g., backup, replication,
                              snapshot, auto-scaling and storage type). DSF service customer selects options and DSF service
                              provider applies options onto metadata. The options are matched onto corresponding storage
                              policies in DSF local storage. The DSF service provider manages the DSF local storage by
                              matched functions onto storage policies. All communications with DSF local storage between
                              the DSF service provider and DSF local storage provider are performed by storage APIs.










                                                                                                         127
