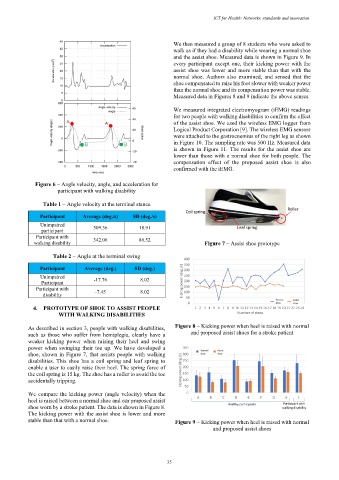

ICT for Health: Networks, standards and innovation




                                                              We then measured a group of 8 students who were asked to
                                                              walk as if they had a disability while wearing a normal shoe
                                                              and the assist shoe. Measured data is shown in Figure 9. In
                                                              every participant except one, their kicking power with the
                                                              assist  shoe  was  lower  and  more  stable  than  that  with  the
                                                              normal  shoe.  Authors  also  examined,  and  sensed  that  the
                                                              shoe compensated to raise his foot slower with weaker power
                                                              than the normal shoe and its compensation power was stable.
                                                              Measured data in Figures 8 and 9 indicate the above senses.

                                                              We measured integrated electromyogram (iEMG) readings
                                                              for two people with walking disabilities to confirm the effect
                                                              of the assist shoe. We used the wireless EMG logger from
                                                              Logical Product Corporation [9]. The wireless EMG sensors
                                                              were attached to the gastrocnemius of the right leg as shown
                                                              in Figure 10. The sampling rate was 500 Hz. Measured data
                                                              is  shown  in  Figure  11.  The results  for  the  assist  shoe  are
                                                              lower than those with a normal shoe for both people. The
                                                              compensation  effect  of  the  proposed  assist  shoe  is  also
                                                              confirmed with the iEMG.


             Figure 6 – Angle velocity, angle, and acceleration for
                     participant with walking disability

                Table 1 – Angle velocity at the terminal stance

               Participant    Average (deg./s)   SD (deg./s)
               Unimpaired         509.36          18.91
                participant
              Participant with
             walking disability   342.06          86.52                  Figure 7 – Assist shoe prototype

                    Table 2 – Angle at the terminal swing

               Participant     Average (deg.)   SD (deg.)
               Unimpaired
                Participant       -17.76          8.02
              Participant with    -7.45           8.02
                disability

             4.  PROTOTYPE OF SHOE TO ASSIST PEOPLE
                      WITH WALKING DISABILITIES

           As described in section 3, people with walking disabilities,   Figure 8 – Kicking power when heel is raised with normal
           such as those who suffer from hemiplegia, clearly have a   and proposed assist shoes for a stroke patient
           weaker  kicking  power  when  raising  their  heel  and  swing
           power  when  swinging  their  toe  up.  We  have  developed  a
           shoe, shown in Figure 7, that assists people with walking
           disabilities. This shoe has a coil spring and leaf spring to
           enable a user to easily raise their heel. The spring force of
           the coil spring is 15 kg. The shoe has a roller to avoid the toe
           accidentally tripping.

           We compare the kicking power (angle velocity) when the
           heel is raised between a normal shoe and our proposed assist
           shoe worn by a stroke patient. The data is shown in Figure 8.
           The kicking power with the assist shoe is lower and more
           stable than that with a normal shoe.               Figure 9 – Kicking power when heel is raised with normal
                                                                            and proposed assist shoes
