Data Volume to be sent (MB) 0.3 0.7 1.0 1.4 1.7 2.0 2.4 2.7 3.0 3.4 3.7 4.1 4.4 4.7 5.1 5.4 5.7 6.1 6.4 6.8 7.1 7.4 7.8 8.1
The values shown in the table represent the required bandwidth needed to send the accumulated flight data (64 wps recording) from an aircraft within the time remaining before recording stops (time of crash)
15 3 6 9 12 15 18 22 25 28 31 34 37 40 43 46 49 52 55 58 61 65 68 71 74
14 3 7 10 13 16 20 23 26 30 33 36 39 43 46 49 53 56 59 63 66 69 72 76 79
13 4 7 11 14 18 21 25 28 32 35 39 43 46 50 53 57 60 64 67 71 74 78 82 85
12 4 8 12 15 19 23 27 31 35 38 42 46 50 54 58 61 65 69 73 77 81 84 88 92
11 4 8 13 17 21 25 29 34 38 42 46 50 54 59 63 67 71 75 80 84 88 92 96 101
10 5 9 14 18 23 28 32 37 41 46 51 55 60 65 69 74 78 83 88 92 97 101 106 111
9 5 10 15 20 26 31 36 41 46 51 56 61 67 72 77 82 87 92 97 102 108 113 118 123
8 6 12 17 23 29 35 40 46 52 58 63 69 75 81 86 92 98 104 109 115 121 127 132 138
7 7 13 20 26 33 39 46 53 59 66 72 79 86 92 99 105 112 118 125 132 138 145 151 158
6 8 15 23 31 38 46 54 61 69 77 84 92 100 108 115 123 131 138 146 154 161 169 177 184
5 9 18 28 37 46 55 65 74 83 92 101 111 120 129 138 147 157 166 175 184 194 203 212 221
4 12 23 35 46 58 69 81 92 104 115 127 138 150 161 173 184 196 207 219 230 242 253 265 276

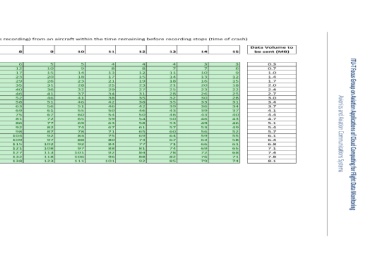

Bandwidth (Kbps) Needed for Crash Scenario (64 wps recording)
3 15 31 46 61 77 92 108 123 138 154 169 184 200 215 230 246 261 276 292 307 323 338 353 369
2 23 46 69 92 115 138 161 184 207 230 253 276 300 323 346 369 392 415 438 461 484 507 530 553
1 46 92 138 184 230 276 323 369 415 461 507 553 599 645 691 737 783 829 876 922 968 1014 1060 1106
Minutes before crash Accumulated Data (Hours) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
46
