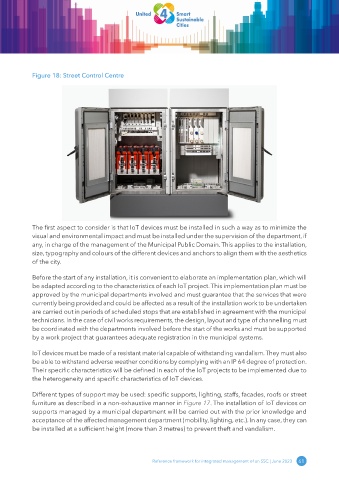

Figure 18: Street Control Centre































            The first aspect to consider is that IoT devices must be installed in such a way as to minimize the
            visual and environmental impact and must be installed under the supervision of the department, if
            any, in charge of the management of the Municipal Public Domain. This applies to the installation,
            size, typography and colours of the different devices and anchors to align them with the aesthetics
            of the city.


            Before the start of any installation, it is convenient to elaborate an implementation plan, which will
            be adapted according to the characteristics of each IoT project. This implementation plan must be
            approved by the municipal departments involved and must guarantee that the services that were
            currently being provided and could be affected as a result of the installation work to be undertaken
            are carried out in periods of scheduled stops that are established in agreement with the municipal
            technicians. In the case of civil works requirements, the design, layout and type of channelling must
            be coordinated with the departments involved before the start of the works and must be supported
            by a work project that guarantees adequate registration in the municipal systems.

            IoT devices must be made of a resistant material capable of withstanding vandalism. They must also
            be able to withstand adverse weather conditions by complying with an IP 64 degree of protection.
            Their specific characteristics will be defined in each of the IoT projects to be implemented due to
            the heterogeneity and specific characteristics of IoT devices.


            Different types of support may be used: specific supports, lighting, staffs, facades, roofs or street
            furniture as described in a non-exhaustive manner in Figure 17. The installation of IoT devices on
            supports managed by a municipal department will be carried out with the prior knowledge and
            acceptance of the affected management department (mobility, lighting, etc.). In any case, they can
            be installed at a sufficient height (more than 3 metres) to prevent theft and vandalism.
