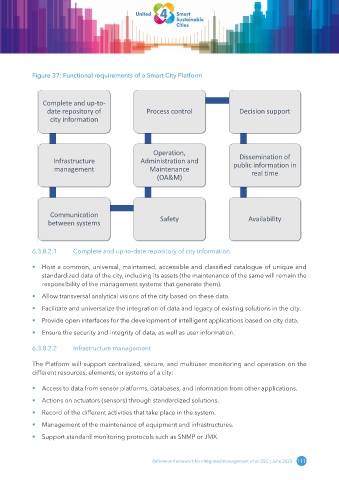

Page 125 - Reference framework for integrated management of an SSC - A U4SSC deliverable on city platforms

Figure 37: Functional requirements of a Smart City Platform

Complete and up-to-
date repository of Process control Decision support
city information

Operation,
Infrastructure Administration and Dissemination of
management Maintenance public information in
real time
(OA&M)

Communication
between systems Safety Availability

6.3.8.2.1 Complete and up-to-date repository of city information

• Host a common, universal, maintained, accessible and classified catalogue of unique and
standardized data of the city, including its assets (the maintenance of the same will remain the
responsibility of the management systems that generate them).

• Allow transversal analytical visions of the city based on these data.

• Facilitate and universalize the integration of data and legacy of existing solutions in the city.
• Provide open interfaces for the development of intelligent applications based on city data.

• Ensure the security and integrity of data, as well as user information.

6.3.8.2.2 Infrastructure management

The Platform will support centralized, secure, and multiuser monitoring and operation on the
different resources, elements, or systems of a city:

• Access to data from sensor platforms, databases, and information from other applications.

• Actions on actuators (sensors) through standardized solutions.

• Record of the different activities that take place in the system.
• Management of the maintenance of equipment and infrastructures.

• Support standard monitoring protocols such as SNMP or JMX.

Reference framework for integrated management of an SSC | June 2023 111
