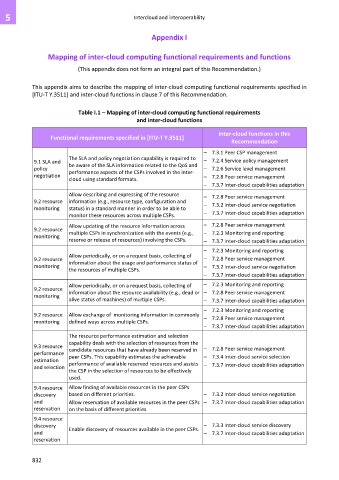

Page 840 - Cloud computing: From paradigm to operation
P. 840

5                                            Intercloud and interoperability


                                                      Appendix I


                  Mapping of inter-cloud computing functional requirements and functions
                            (This appendix does not form an integral part of this Recommendation.)


            This appendix aims to describe the mapping of inter-cloud computing functional requirements specified in
            [ITU-T Y.3511] and inter-cloud functions in clause 7 of this Recommendation.


                             Table I.1 – Mapping of inter-cloud computing functional requirements
                                                 and inter-cloud functions

                                                                              Inter-cloud functions in this
                   Functional requirements specified in [ITU-T Y.3511]
                                                                                  Recommendation
                                                                         –  7.3.1 Peer CSP management
                         The SLA and policy negotiation capability is required to
             9.1 SLA and   be aware of the SLA information related to the QoS and   –  7.2.4 Service policy management
             policy                                                      –  7.2.6 Service level management
                         performance aspects of the CSPs involved in the inter-
             negotiation                                                 –  7.2.8 Peer service management
                         cloud using standard formats.
                                                                         –  7.3.7 Inter-cloud capabilities adaptation
                         Allow describing and expressing of the resource
                                                                         –  7.2.8 Peer service management
             9.2 resource  information (e.g., resource type, configuration and
                                                                         –  7.3.2 Inter-cloud service negotiation
             monitoring   status) in a standard manner in order to be able to
                         monitor these resources across multiple CSPs.   –  7.3.7 Inter-cloud capabilities adaptation
                         Allow updating of the resource information across   –  7.2.8 Peer service management
             9.2 resource   multiple CSPs in synchronization with the events (e.g.,   –  7.2.3 Monitoring and reporting
             monitoring
                         reserve or release of resources) involving the CSPs.   –  7.3.7 Inter-cloud capabilities adaptation
                                                                         –  7.2.3 Monitoring and reporting
                         Allow periodically, or on a request basis, collecting of
             9.2 resource   information about the usage and performance status of   –  7.2.8 Peer service management
             monitoring                                                  –  7.3.2 Inter-cloud service negotiation
                         the resources of multiple CSPs.
                                                                         –  7.3.7 Inter-cloud capabilities adaptation
                         Allow periodically, or on a request basis, collecting of   –  7.2.3 Monitoring and reporting
             9.2 resource
                         information about the resource availability (e.g., dead or  –  7.2.8 Peer service management
             monitoring
                         alive status of machines) of multiple CSPs.     –  7.3.7 Inter-cloud capabilities adaptation
                                                                         –  7.2.3 Monitoring and reporting
             9.2 resource  Allow exchange of  monitoring information in commonly
                                                                         –  7.2.8 Peer service management
             monitoring   defined ways across multiple CSPs.
                                                                         –  7.3.7 Inter-cloud capabilities adaptation
                         The resource performance estimation and selection
                         capability deals with the selection of resources from the
             9.3 resource   candidate resources that have already been reserved in   –  7.2.8 Peer service management
             performance   peer CSPs. This capability estimates the achievable   –  7.3.4 Inter-cloud service selection
             estimation
                         performance of available reserved resources and assists  –  7.3.7 Inter-cloud capabilities adaptation
             and selection
                         the CSP in the selection of resources to be effectively
                         used.
             9.4 resource  Allow finding of available resources in the peer CSPs
             discovery   based on different priorities.                  –  7.3.2 Inter-cloud service negotiation
             and         Allow reservation of available resources in the peer CSPs  –  7.3.7 Inter-cloud capabilities adaptation
             reservation   on the basis of different priorities
             9.4 resource
             discovery   Enable discovery of resources available in the peer CSPs.   –  7.3.3 Inter-cloud service discovery
             and                                                         –  7.3.7 Inter-cloud capabilities adaptation
             reservation


            832
