3                                                       XaaS


            uses I_CCM_UAPM to refer to CSC types and profiles from the UAPM-F. A resource request/cancellation is
            delivered by I_SC_CCM and transferred to PA-F thorough I_CCM_PA. Additionally, the CCM-F receives the
            client  connection  state  from  the  SC-F  through  I_SC_CCM  to  monitor  virtual  desktop  connection  and
            reconnection requests from the SCUE-F through I_SCUE_CCM against network failure. A detailed functional
            description for the CCM-F is specified in clause 7.2.2.

            9.2.4   Provisioning and allocation of virtual desktop function
            In order to configure the pre-configured virtual desktop environment or create new virtual desktops, the PA-
            F uses I_PA_PM, I_PA_OPM, and I_PA_UAPM to get power performance information, policies, and CSU's
            account information, respectively. After configuration of a virtual desktop, the PA-F allocates the virtual
            desktop using VI-FS through I_PA_IAM. The PA-F also synchronizes the DaaS user's state with the SCUE-F
            through I_SCUE_PA. Detailed functional description for the PA-F is specified in clause 7.2.4.

            9.3     Virtual desktop resource management functions

            The VDRM-FS are composed of monitoring and controlling virtual desktop resource function (MC-F), UAPM-
            F, virtual desktop resource allocation and distribution function (RAD-F) and operational policy management
            for  DaaS  function  (OPM-F).  VDRM-FS  also  includes  high  availability  for  DaaS  function  (HA-F)  and  power
            management of virtual desktop resource function (PM-F) for more effective management. Figure 9-3 shows
            VDRM-FS with two interconnections of VDCD-FS and VI-FS.

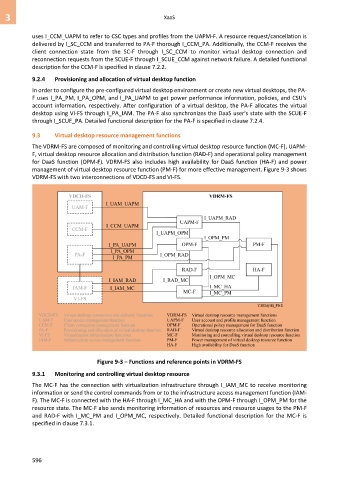

                                   Figure 9-3 – Functions and reference points in VDRM-FS
            9.3.1   Monitoring and controlling virtual desktop resource

            The MC-F has the connection with virtualization infrastructure through I_IAM_MC to receive monitoring
            information or send the control commands from or to the infrastructure access management function (IAM-
            F). The MC-F is connected with the HA-F through I_MC_HA and with the OPM-F through I_OPM_PM for the
            resource state. The MC-F also sends monitoring information of resources and resource usages to the PM-F
            and  RAD-F  with  I_MC_PM  and  I_OPM_MC,  respectively.  Detailed  functional  description  for  the  MC-F  is
            specified in clause 7.3.1.






            596
