XaaS                                                     3


                                                      Appendix I


                           Relationship between DaaS logical components and cloud
                                         computing reference architecture

                            (This appendix does not form an integral part of this Recommendation.)


            This  appendix  provides  the  relationship  between  DaaS  logical  components  [ITU-T  Y.3503]  and  cloud
            computing reference architecture in [ITU-T Y.3502].

            The relationship between DaaS logical components and cloud computing reference architecture can be done
            in two steps.

            The first step is the mapping between DaaS logical components and DaaS functions in clause 6. Based on
            clause 6, each corresponding functions of DaaS for the DaaS logical components in [ITU-T Y.3503] is described
            in Table 6-1.

            The second step is the mapping between DaaS functions and functional components of cloud computing
            reference architecture. This mapping is described in Figure 8-1.

            Therefore, the possible mapping between DaaS logical components and functional components in cloud
            computing reference architecture is shown in Figure I.1.

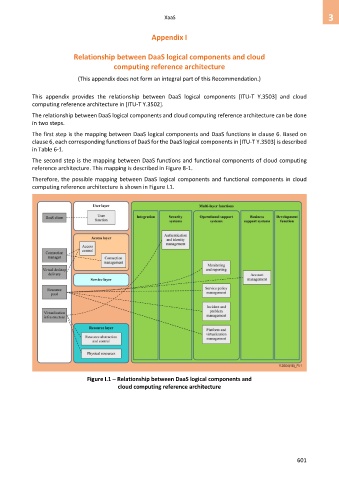

                                Figure I.1 – Relationship between DaaS logical components and
                                          cloud computing reference architecture
