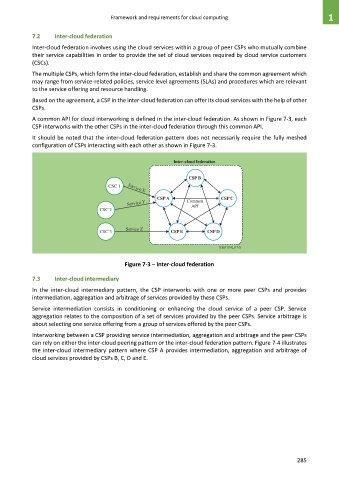

Framework and requirements for cloud computing                              1


            7.2     Inter-cloud federation

            Inter-cloud federation involves using the cloud services within a group of peer CSPs who mutually combine
            their service capabilities in order to provide the set of cloud services required by cloud service customers
            (CSCs).

            The multiple CSPs, which form the inter-cloud federation, establish and share the common agreement which
            may range from service-related policies, service level agreements (SLAs) and procedures which are relevant
            to the service offering and resource handling.
            Based on the agreement, a CSP in the inter-cloud federation can offer its cloud services with the help of other
            CSPs.

            A common API for cloud interworking is defined in the inter-cloud federation. As shown in Figure 7-3, each
            CSP interworks with the other CSPs in the inter-cloud federation through this common API.

            It should be noted that the inter-cloud federation pattern does not necessarily require the fully meshed
            configuration of CSPs interacting with each other as shown in Figure 7-3.


                                                              Inter-cloud federation

                                                                   CSP B
                                       CSC 1  Service X

                                                        CSP A                  CSP C
                                              Service Y            Common
                                    CSC 2                           API



                                             Service Z
                                    CSC 3                    CSP E        CSP D

                                                                              Y.3511(14)_F7-3

                                             Figure 7-3 – Inter-cloud federation

            7.3     Inter-cloud intermediary

            In  the  inter-cloud  intermediary  pattern,  the  CSP  interworks  with  one  or  more  peer  CSPs  and  provides
            intermediation, aggregation and arbitrage of services provided by these CSPs.
            Service  intermediation  consists  in  conditioning  or  enhancing  the  cloud  service  of  a  peer  CSP.  Service
            aggregation relates to the composition of a set of services provided by the peer CSPs. Service arbitrage is
            about selecting one service offering from a group of services offered by the peer CSPs.

            Interworking between a CSP providing service intermediation, aggregation and arbitrage and the peer CSPs
            can rely on either the inter-cloud peering pattern or the inter-cloud federation pattern. Figure 7-4 illustrates
            the inter-cloud intermediary pattern where CSP A provides intermediation, aggregation and arbitrage of
            cloud services provided by CSPs B, C, D and E.




















                                                                                                         285
