Page 218 - Cloud computing: From paradigm to operation

1 Framework and requirements for cloud computing

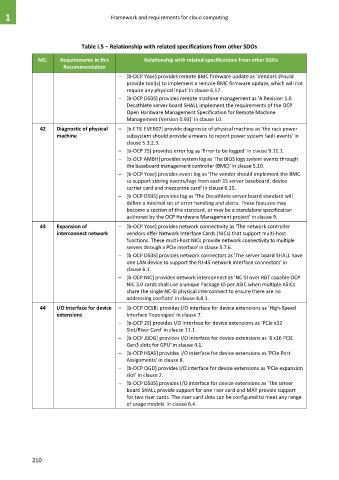

Table I.5 – Relationship with related specifications from other SDOs

NO. Requirements in this Relationship with related specifications from other SDOs
Recommendation
– [b-OCP Yose] provides remote BMC firmware update as 'Vendors should
provide tool(s) to implement a remote BMC firmware update, which will not
require any physical input' in clause 6.17.
– [b-OCP DSBS] provides remote machine management as 'A Revision 1.0
Decathlete server board SHALL implement the requirements of the OCP
Open Hardware Management Specification for Remote Machine
Management (Version 0.93)' in clause 10.
42 Diagnostic of physical – [b-ETSI EVE007] provide diagnostic of physical machine as 'the rack power
machine subsystem should provide a means to report power system fault events' in
clause 5.3.2.3.
– [b-OCP 2S] provides error log as 'Error to be logged' in clause 9.11.1.
– [b-OCP AMBH] provides system log as 'The BIOS logs system events through
the baseboard management controller (BMC)' in clause 5.10.
– [b-OCP Yose] provides event log as 'The vendor should implement the BMC
to support storing events/logs from each 1S server baseboard, device
carrier card and mezzanine card' in clause 6.15.
– [b-OCP DSBS] provides log as 'The Decathlete server board standard will
define a minimal set of error handling and alerts. These features may
become a section of this standard, or may be a standalone specification
authored by the OCP Hardware Management project' in clause 9.
43 Expansion of – [b-OCP Yose] provides network connectivity as 'The network controller
interconnect network vendors offer Network Interface Cards (NICs) that support multi-host
functions. These multi-host NICs provide network connectivity to multiple
servers through a PCIe interface' in clause 5.7.6.
– [b-OCP DSBS] provides network connectors as 'The server board SHALL have
one LAN device to support the RJ-45 network interface connectors' in
clause 6.1.
– [b-OCP NIC] provides network interconnect as 'NC-SI over RBT capable OCP
NIC 3.0 cards shall use a unique Package ID per ASIC when multiple ASICs
share the single NC-SI physical interconnect to ensure there are no
addressing conflicts' in clause 4.8.1.
44 I/O interface for device – [b-OCP OCSB] provides I/O interface for device extensions as 'High-Speed
extensions Interface Topologies' in clause 7.
– [b-OCP 2S] provides I/O interface for device extensions as 'PCIe x32
Slot/Riser Card' in clause 11.1.
– [b-OCP JBOG] provides I/O interface for device extensions as '8 x16 PCIE
Gen3 slots for GPU' in clause 4.1.
– [b-OCP HSAS] provides I/O interface for device extensions as 'PCIe Port
Assignments' in clause 8.
– [b-OCP QGD] provides I/O interface for device extensions as 'PCIe expansion
slot' in clause 2.
– [b-OCP DSBS] provides I/O interface for device extensions as 'The server
board SHALL provide support for one riser card and MAY provide support
for two riser cards. The riser card slots can be configured to meet any range
of usage models' in clause 6.4.

210
