Page 26 - Technical report on SS7 vulnerabilities and mitigation measures for digital financial services transactions

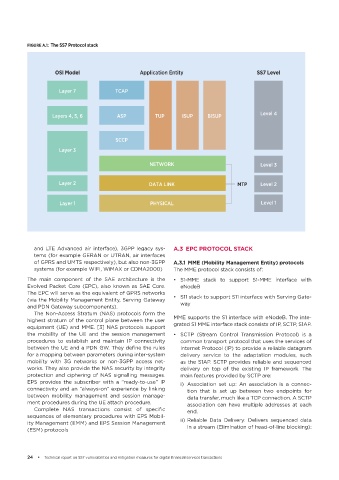

FIGURE A.1: The SS7 Protocol stack

OSI Model Application Entity SS7 Level

Layer 7 TCAP

Layers 4, 5, 6 ASP TUP ISUP BISUP Level 4

SCCP
Layer 3

NETWORK Level 3

Layer 2 DATA LINK MTP Level 2

Layer 1 PHYSICAL Level 1

and LTE Advanced air interface), 3GPP legacy sys- A.3 EPC PROTOCOL STACK
tems (for example GERAN or UTRAN, air interfaces
of GPRS and UMTS respectively), but also non-3GPP A.3.1 MME (Mobility Management Entity) protocols
systems (for example WIFI, WiMAX or CDMA2000) The MME protocol stack consists of:
The main component of the SAE architecture is the • S1-MME stack to support S1-MME interface with
Evolved Packet Core (EPC), also known as SAE Core. eNodeB
The EPC will serve as the equivalent of GPRS networks
(via the Mobility Management Entity, Serving Gateway • S11 stack to support S11 interface with Serving Gate-
and PDN Gateway subcomponents). way
The Non-Access Stratum (NAS) protocols form the
highest stratum of the control plane between the user MME supports the S1 interface with eNodeB. The inte-
equipment (UE) and MME. [3] NAS protocols support grated S1 MME interface stack consists of IP, SCTP, S1AP.
the mobility of the UE and the session management • SCTP (Stream Control Transmission Protocol) is a
procedures to establish and maintain IP connectivity common transport protocol that uses the services of
between the UE and a PDN GW. They define the rules Internet Protocol (IP) to provide a reliable datagram
for a mapping between parameters during inter-system delivery service to the adaptation modules, such
mobility with 3G networks or non-3GPP access net- as the S1AP. SCTP provides reliable and sequenced
works. They also provide the NAS security by integrity delivery on top of the existing IP framework. The
protection and ciphering of NAS signalling messages. main features provided by SCTP are:
EPS provides the subscriber with a “ready-to-use” IP i) Association set up: An association is a connec-
connectivity and an “always-on” experience by linking tion that is set up between two endpoints for
between mobility management and session manage- data transfer, much like a TCP connection. A SCTP
ment procedures during the UE attach procedure. association can have multiple addresses at each
Complete NAS transactions consist of specific end.
sequences of elementary procedures with EPS Mobil-
ity Management (EMM) and EPS Session Management ii) Reliable Data Delivery: Delivers sequenced data
(ESM) protocols in a stream (Elimination of head-of-line blocking):

24 • Technical report on SS7 vulnerabilities and mitigation measures for digital financial services transactions
