5 Big data - Concept and application for telecommunications

A use case for storage optimization based on the customer's purpose
Title
in data storage federation
Derived – Clause 8.1 requirement (1)
requirements – Clause 8.3 requirement (1)
– Clause 8.3 requirement (2)
– Clause 8.3 requirement (3)

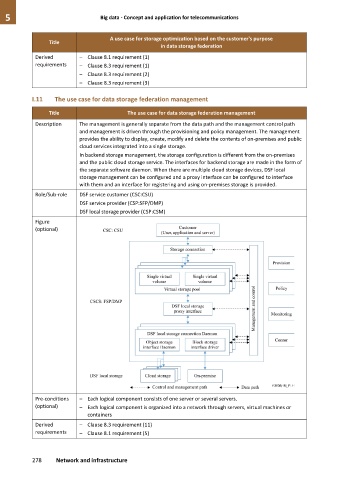

I.11 The use case for data storage federation management

Title The use case for data storage federation management

Description The management is generally separate from the data path and the management control path
and management is driven through the provisioning and policy management. The management
provides the ability to display, create, modify and delete the contents of on-premises and public
cloud services integrated into a single storage.
In backend storage management, the storage configuration is different from the on-premises
and the public cloud storage service. The interfaces for backend storage are made in the form of
the separate software daemon. When there are multiple cloud storage devices, DSF local
storage management can be configured and a proxy interface can be configured to interface
with them and an interface for registering and using on-premises storage is provided.
Role/Sub-role DSF service customer (CSC:CSU)
DSF service provider (CSP:SFP/DMP)
DSF local storage provider (CSP:CSM)
Figure
(optional)

Pre-conditions – Each logical component consists of one server or several servers.
(optional) – Each logical component is organized into a network through servers, virtual machines or
containers
Derived – Clause 8.3 requirement (11)
requirements – Clause 8.1 requirement (5)
