Big data - Concept and application for telecommunications                       5


            I.7     Efficient data storage management

                   Title                              Efficient data storage management

             Description      As shown in Figure 1, DSF service provider efficiently manages data to support better storage
                              access performance and to reduce management burden. Tiering is a technique to fulfil
                              efficient data management. By organizing tiered caches, frequently accessed files are stored in
                              high speed cache. While access files are rarely stored in a low speed cache. Cached files are
                              stored on corresponding data storages by managed API.
                              As shown in Figure 2, a DSF service customer saves a same file on a single virtual volume. To
                              avoid waste of data storage capacity DSF service provider performs a de-duplicate data
                              operation. For example, when a file is stored, data replication checking is accomplished. As the
                              result of the checking, a file is stored. If a same file is already stored, the file is managed by
                              data operation metadata.
             Role/Sub-role    DSF service customer (CSC:CSU)
                              DSF service provider (CSP:SFP)
             Figure (optional)

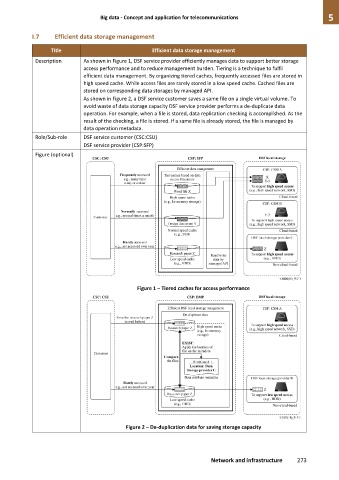

                                                 Figure 1 – Tiered caches for access performance



























                                             Figure 2 – De-duplication data for saving storage capacity





                                                                           Network and infrastructure    273
