3 XaaS

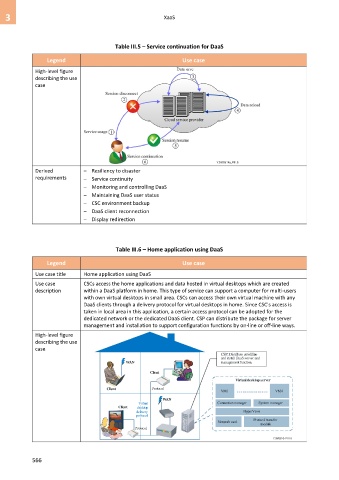

Table III.5 – Service continuation for DaaS

Legend Use case
High-level figure
describing the use
case

Derived – Resiliency to disaster
requirements – Service continuity
– Monitoring and controlling DaaS
– Maintaining DaaS user status
– CSC environment backup
– DaaS client reconnection
– Display redirection

Table III.6 – Home application using DaaS

Legend Use case

Use case title Home application using DaaS
Use case CSCs access the home applications and data hosted in virtual desktops which are created
description within a DaaS platform in home. This type of service can support a computer for multi-users
with own virtual desktops in small area. CSCs can access their own virtual machine with any
DaaS clients through a delivery protocol for virtual desktops in home. Since CSC's access is
taken in local area in this application, a certain access protocol can be adopted for the
dedicated network or the dedicated DaaS client. CSP can distribute the package for server
management and installation to support configuration functions by on-line or off-line ways.
High-level figure
describing the use
case
CSP: Distribute on/offline
and install DaaS server and
WAN management function.
Client
Virtual desktop server
Client Protocol
V 1M V 4M
WAN
Virtual Connection manager System manager
Client desktop
delivery HyperVisor
protocol
Protocol transfer
Network card
module
Protocol
Y.3503(14)_FIII.6
