Page 549 - Cloud computing: From paradigm to operation

Cloud Computing management 2

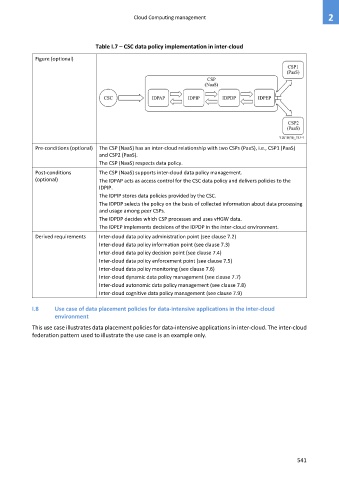

Table I.7 – CSC data policy implementation in inter-cloud
Figure (optional)

Pre-conditions (optional) The CSP (NaaS) has an inter-cloud relationship with two CSPs (PaaS), i.e., CSP1 (PaaS)
and CSP2 (PaaS).
The CSP (NaaS) respects data policy.
Post-conditions The CSP (NaaS) supports inter-cloud data policy management.
(optional) The IDPAP acts as access control for the CSC data policy and delivers policies to the
IDPIP.
The IDPIP stores data policies provided by the CSC.
The IDPDP selects the policy on the basis of collected information about data processing
and usage among peer CSPs.
The IDPDP decides which CSP processes and uses vHGW data.
The IDPEP implements decisions of the IDPDP in the inter-cloud environment.
Derived requirements Inter-cloud data policy administration point (see clause 7.2)
Inter-cloud data policy information point (see clause 7.3)
Inter-cloud data policy decision point (see clause 7.4)
Inter-cloud data policy enforcement point (see clause 7.5)
Inter-cloud data policy monitoring (see clause 7.6)
Inter-cloud dynamic data policy management (see clause 7.7)
Inter-cloud autonomic data policy management (see clause 7.8)
Inter-cloud cognitive data policy management (see clause 7.9)

I.8 Use case of data placement policies for data-intensive applications in the inter-cloud
environment
This use case illustrates data placement policies for data-intensive applications in inter-cloud. The inter-cloud
federation pattern used to illustrate the use case is an example only.

541
