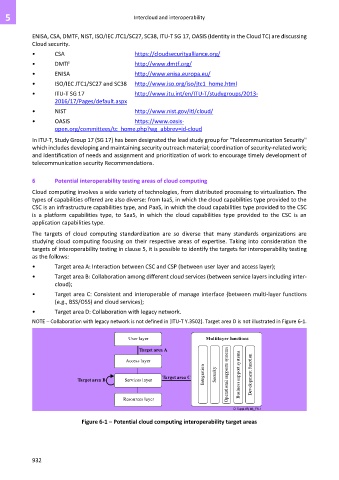

Page 940 - Cloud computing: From paradigm to operation

5 Intercloud and interoperability

ENISA, CSA, DMTF, NIST, ISO/IEC JTC1/SC27, SC38, ITU-T SG 17, OASIS (Identity in the Cloud TC) are discussing
Cloud security.
• CSA https://cloudsecurityalliance.org/
• DMTF http://www.dmtf.org/

• ENISA http://www.enisa.europa.eu/
• ISO/IEC JTC1/SC27 and SC38 http://www.iso.org/iso/jtc1_home.html
• ITU-T SG 17 http://www.itu.int/en/ITU-T/studygroups/2013-
2016/17/Pages/default.aspx
• NIST http://www.nist.gov/itl/cloud/
• OASIS https://www.oasis-
open.org/committees/tc_home.php?wg_abbrev=id-cloud
In ITU-T, Study Group 17 (SG 17) has been designated the lead study group for "Telecommunication Security"
which includes developing and maintaining security outreach material; coordination of security-related work;
and identification of needs and assignment and prioritization of work to encourage timely development of
telecommunication security Recommendations.

6 Potential interoperability testing areas of cloud computing

Cloud computing involves a wide variety of technologies, from distributed processing to virtualization. The
types of capabilities offered are also diverse: from IaaS, in which the cloud capabilities type provided to the
CSC is an infrastructure capabilities type, and PaaS, in which the cloud capabilities type provided to the CSC
is a platform capabilities type, to SaaS, in which the cloud capabilities type provided to the CSC is an
application capabilities type.

The targets of cloud computing standardization are so diverse that many standards organizations are
studying cloud computing focusing on their respective areas of expertise. Taking into consideration the
targets of interoperability testing in clause 5, it is possible to identify the targets for interoperability testing
as the follows:
• Target area A: Interaction between CSC and CSP (between user layer and access layer);
• Target area B: Collaboration among different cloud services (between service layers including inter-
cloud);
• Target area C: Consistent and interoperable of manage interface (between multi-layer functions
(e.g., BSS/OSS) and cloud services);
• Target area D: Collaboration with legacy network.
NOTE – Collaboration with legacy network is not defined in [ITU-T Y.3502]. Target area D is not illustrated in Figure 6-1.

User layer Multilayer functions
Target area A
Access layer
Integration Security Operational supports systems Business support systems Development function
Target area C
Target area B Services layer

Resources layer
Q Suppl.65(14)_F6-1

Figure 6-1 – Potential cloud computing interoperability target areas
