Page 915 - Cloud computing: From paradigm to operation

Intercloud and interoperability 5

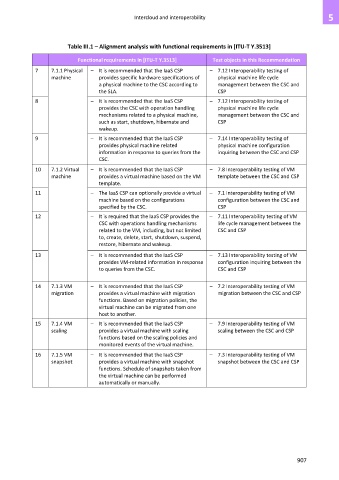

Table III.1 – Alignment analysis with functional requirements in [ITU-T Y.3513]

Functional requirements in [ITU-T Y.3513] Test objects in this Recommendation
7 7.1.1 Physical – It is recommended that the IaaS CSP – 7.12 Interoperability testing of
machine provides specific hardware specifications of physical machine life cycle
a physical machine to the CSC according to management between the CSC and
the SLA. CSP

8 – It is recommended that the IaaS CSP – 7.12 Interoperability testing of
provides the CSC with operation handling physical machine life cycle
mechanisms related to a physical machine, management between the CSC and
such as start, shutdown, hibernate and CSP
wakeup.

9 – It is recommended that the IaaS CSP – 7.14 Interoperability testing of
provides physical machine related physical machine configuration
information in response to queries from the inquiring between the CSC and CSP
CSC.

10 7.1.2 Virtual – It is recommended that the IaaS CSP – 7.8 Interoperability testing of VM
machine provides a virtual machine based on the VM template between the CSC and CSP
template.

11 – The IaaS CSP can optionally provide a virtual – 7.1 Interoperability testing of VM
machine based on the configurations configuration between the CSC and
specified by the CSC. CSP

12 – It is required that the IaaS CSP provides the – 7.11 Interoperability testing of VM
CSC with operations handling mechanisms life cycle management between the
related to the VM, including, but not limited CSC and CSP
to, create, delete, start, shutdown, suspend,
restore, hibernate and wakeup.

13 – It is recommended that the IaaS CSP – 7.13 Interoperability testing of VM
provides VM-related information in response configuration inquiring between the
to queries from the CSC. CSC and CSP

14 7.1.3 VM – It is recommended that the IaaS CSP – 7.2 Interoperability testing of VM
migration provides a virtual machine with migration migration between the CSC and CSP
functions. Based on migration policies, the
virtual machine can be migrated from one
host to another.
15 7.1.4 VM – It is recommended that the IaaS CSP – 7.9 Interoperability testing of VM
scaling provides a virtual machine with scaling scaling between the CSC and CSP
functions based on the scaling policies and
monitored events of the virtual machine.
16 7.1.5 VM – It is recommended that the IaaS CSP – 7.3 Interoperability testing of VM
snapshot provides a virtual machine with snapshot snapshot between the CSC and CSP
functions. Schedule of snapshots taken from
the virtual machine can be performed
automatically or manually.

907
