4                                             Video processing and storage

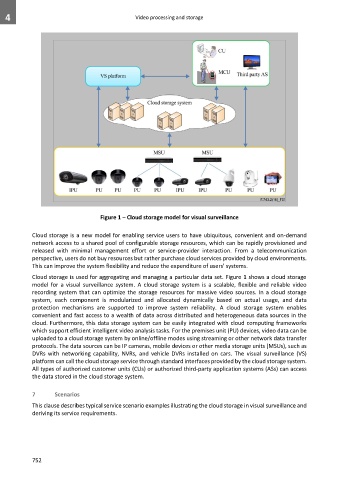

                                    Figure 1 – Cloud storage model for visual surveillance


            Cloud storage is a new model for enabling service users to have ubiquitous, convenient and on-demand
            network access to a shared pool of configurable storage resources, which can be rapidly provisioned and
            released  with  minimal  management  effort  or  service-provider  interaction.  From  a  telecommunication
            perspective, users do not buy resources but rather purchase cloud services provided by cloud environments.
            This can improve the system flexibility and reduce the expenditure of users' systems.
            Cloud storage is used for aggregating and managing a particular data set. Figure 1 shows a cloud storage
            model  for  a  visual  surveillance  system.  A  cloud  storage  system  is  a  scalable,  flexible  and  reliable  video
            recording system that can optimize the storage resources for massive video sources. In a cloud storage
            system,  each  component  is  modularized  and  allocated  dynamically  based  on  actual  usage,  and  data
            protection  mechanisms  are  supported  to  improve  system  reliability.  A  cloud  storage  system  enables
            convenient and fast access to a wealth of data across distributed and heterogeneous data sources in the
            cloud. Furthermore, this data storage system can be easily integrated with cloud computing frameworks
            which support efficient intelligent video analysis tasks. For the premises unit (PU) devices, video data can be
            uploaded to a cloud storage system by online/offline modes using streaming or other network data transfer
            protocols. The data sources can be IP cameras, mobile devices or other media storage units (MSUs), such as
            DVRs  with  networking  capability,  NVRs,  and  vehicle  DVRs  installed  on  cars.  The  visual  surveillance  (VS)
            platform can call the cloud storage service through standard interfaces provided by the cloud storage system.
            All types of authorized customer units (CUs) or authorized third-party application systems (ASs) can access
            the data stored in the cloud storage system.


            7       Scenarios
            This clause describes typical service scenario examples illustrating the cloud storage in visual surveillance and
            deriving its service requirements.
