5 Big data - Concept and application for telecommunications

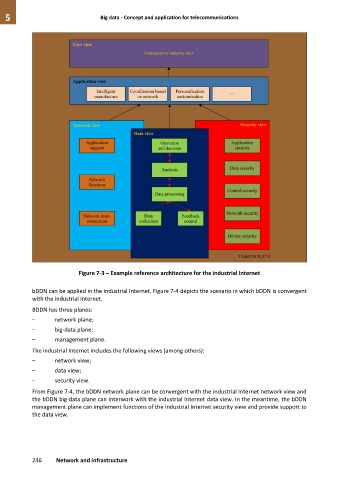

Figure 7-3 – Example reference architecture for the industrial Internet

bDDN can be applied in the industrial Internet. Figure 7-4 depicts the scenario in which bDDN is convergent
with the industrial Internet.
BDDN has three planes:

– network plane;
– big-data plane;
– management plane.
The industrial Internet includes the following views (among others):
– network view;

– data view;
– security view.
From Figure 7-4, the bDDN network plane can be convergent with the industrial Internet network view and
the bDDN big-data plane can interwork with the industrial Internet data view. In the meantime, the bDDN
management plane can implement functions of the industrial Internet security view and provide support to
the data view.
