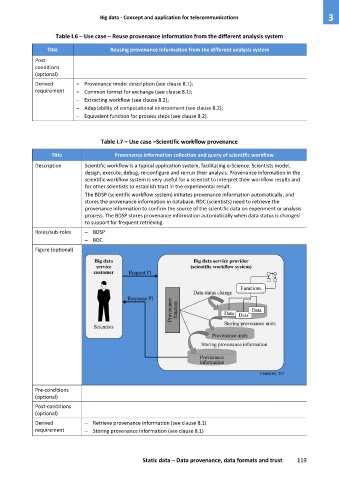

Page 127 - Big data - Concept and application for telecommunications
P. 127
Big data - Concept and application for telecommunications 3
Table I.6 – Use case – Reuse provenance information from the different analysis system
Title Reusing provenance information from the different analysis system
Post-
conditions
(optional)
Derived – Provenance model description (see clause 8.1);
requirement – Common format for exchange (see clause 8.1);
– Extracting workflow (see clause 8.2);
– Adaptability of computational environment (see clause 8.2);
– Equivalent function for process steps (see clause 8.2).
Table I.7 – Use case –Scientific workflow provenance
Title Provenance information collection and query of scientific workflow
Description Scientific workflow is a typical application system, facilitating e-Science. Scientists model,
design, execute, debug, re-configure and re-run their analysis. Provenance information in the
scientific workflow system is very useful for a scientist to interpret their workflow results and
for other scientists to establish trust in the experimental result.
The BDSP (scientific workflow system) initiates provenance information automatically, and
stores the provenance information in database. BDC (scientists) need to retrieve the
provenance information to confirm the source of the scientific data on experiment or analysis
process. The BDSP stores provenance information automatically when data status is changed
to support for frequent retrieving.
Roles/sub-roles – BDSP
– BDC
Figure (optional)
Pre-conditions
(optional)
Post-conditions
(optional)
Derived – Retrieve provenance information (see clause 8.1)
requirement – Storing provenance information (see clause 8.1)
Static data – Data provenance, data formats and trust 119
