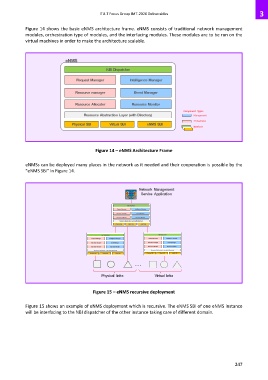

Figure 14 shows the basic eNMS architecture frame. eNMS consists of traditional network management
modules, orchestration type of modules, and the interfacing modules. These modules are to be run on the
virtual machines in order to make the architecture scalable.

eNMS

NBI Dispatcher

Request Manager Intelligence Manager

Resource manager Event Manager

Resource Allocator Resource Monitor
Component Types
Resource Abstraction Layer (with Directory) Management
Orchestration
Physical SBI Virtual SBI eNMS SBI Interfaces

Figure 14 – eNMS Architecture Frame

eNMSs can be deployed many places in the network as it needed and their cooperation is possible by the
“eNMS SBI” in Figure 14.

Network Management
Service Application

NBI Dispatcher
Request Manager Intelligence Manager
Resource manager Event Manager
Resource Allocator Resource Monitor
Resource Abstraction Layer (with Directory)
Physical SBI Virtual SBI eNMS SBI

NBI Dispatcher NBI Dispatcher
Request Manager Intelligence Manager Request Manager Intelligence Manager
Resource manager Event Manager Resource manager Event Manager
Resource Allocator Resource Monitor Resource Allocator Resource Monitor
Resource Abstraction Layer (with Directory) Resource Abstraction Layer (with Directory)
Physical SBI Virtual SBI eNMS SBI Physical SBI Virtual SBI eNMS SBI
. . .

Physical Infra Virtual Infra

Figure 15 – eNMS recursive deployment

Figure 15 shows an example of eNMS deployment which is recursive. The eNMS SBI of one eNMS instance
will be interfacing to the NBI dispatcher of the other instance taking care of different domain.
