Video processing and storage                                       4

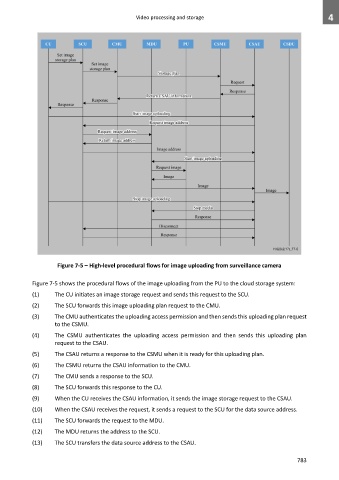

                     Figure 7-5 – High-level procedural flows for image uploading from surveillance camera


            Figure 7-5 shows the procedural flows of the image uploading from the PU to the cloud storage system:
            (1)     The CU initiates an image storage request and sends this request to the SCU.
            (2)     The SCU forwards this image uploading plan request to the CMU.

            (3)     The CMU authenticates the uploading access permission and then sends this uploading plan request
                    to the CSMU.

            (4)     The  CSMU  authenticates  the  uploading  access  permission  and  then  sends  this  uploading  plan
                    request to the CSAU.
            (5)     The CSAU returns a response to the CSMU when it is ready for this uploading plan.

            (6)     The CSMU returns the CSAU information to the CMU.
            (7)     The CMU sends a response to the SCU.
            (8)     The SCU forwards this response to the CU.

            (9)     When the CU receives the CSAU information, it sends the image storage request to the CSAU.
            (10)    When the CSAU receives the request, it sends a request to the SCU for the data source address.

            (11)    The SCU forwards the request to the MDU.
            (12)    The MDU returns the address to the SCU.
            (13)    The SCU transfers the data source address to the CSAU.
