XaaS                                                     3




                                                         User layer

                                                        Access layer



                                         Service               IaaS
                                         layer       (Computing/storage/network)



                                                       Physical/virtual resources
                                         Resource
                                         layer           (Processing, storage
                                                           and networking)

                                                                        Y.3513(14)_F6-1

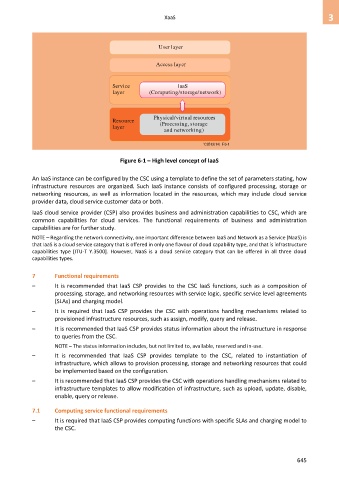

                                           Figure 6-1 – High level concept of IaaS

            An IaaS instance can be configured by the CSC using a template to define the set of parameters stating, how
            infrastructure  resources  are  organized.  Such  IaaS  instance  consists  of  configured  processing,  storage  or
            networking  resources,  as well as  information  located  in  the  resources,  which may  include  cloud  service
            provider data, cloud service customer data or both.
            IaaS cloud service provider (CSP) also provides business and administration capabilities to CSC, which are
            common  capabilities  for  cloud  services.  The  functional  requirements  of  business  and  administration
            capabilities are for further study.

            NOTE – Regarding the network connectivity, one important difference between IaaS and Network as a Service (NaaS) is
            that IaaS is a cloud service category that is offered in only one flavour of cloud capability type, and that is infrastructure
            capabilities  type  [ITU-T  Y.3500].  However,  NaaS  is  a  cloud  service  category  that  can  be  offered  in  all  three  cloud
            capabilities types.


            7       Functional requirements
            –       It  is  recommended  that  IaaS  CSP  provides  to  the  CSC  IaaS  functions,  such  as  a  composition  of
                    processing, storage, and networking resources with service logic, specific service level agreements
                    (SLAs) and charging model.

            –       It  is  required  that  IaaS  CSP  provides  the  CSC  with  operations  handling  mechanisms  related  to
                    provisioned infrastructure resources, such as assign, modify, query and release.

            –       It is recommended that IaaS CSP provides status information about the infrastructure in response
                    to queries from the CSC.
                    NOTE – The status information includes, but not limited to, available, reserved and in-use.
            –       It  is  recommended  that  IaaS  CSP  provides  template  to  the  CSC,  related  to  instantiation  of
                    infrastructure, which allows to provision processing, storage and networking resources that could
                    be implemented based on the configuration.
            –       It is recommended that IaaS CSP provides the CSC with operations handling mechanisms related to
                    infrastructure templates to allow modification of infrastructure, such as upload, update, disable,
                    enable, query or release.

            7.1     Computing service functional requirements

            –       It is required that IaaS CSP provides computing functions with specific SLAs and charging model to
                    the CSC.





                                                                                                         645
