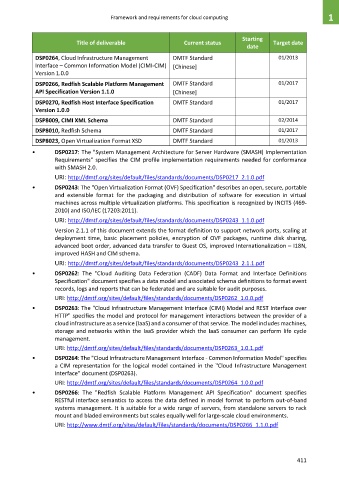

Page 419 - Cloud computing: From paradigm to operation

Framework and requirements for cloud computing 1

Starting
Title of deliverable Current status Target date
date
DSP0264, Cloud Infrastructure Management DMTF Standard 01/2013
Interface – Common Information Model (CIMI-CIM) [Chinese]
Version 1.0.0
DSP0266, Redfish Scalable Platform Management DMTF Standard 01/2017

API Specification Version 1.1.0 [Chinese]
DSP0270, Redfish Host Interface Specification DMTF Standard 01/2017

Version 1.0.0
DSP8009, CIMI XML Schema DMTF Standard 02/2014
DSP8010, Redfish Schema DMTF Standard 01/2017
DSP8023, Open Virtualization Format XSD DMTF Standard 01/2013

• DSP0217: The "System Management Architecture for Server Hardware (SMASH) Implementation
Requirements" specifies the CIM profile implementation requirements needed for conformance
with SMASH 2.0.
URI: http://dmtf.org/sites/default/files/standards/documents/DSP0217_2.1.0.pdf
• DSP0243: The "Open Virtualization Format (OVF) Specification" describes an open, secure, portable
and extensible format for the packaging and distribution of software for execution in virtual
machines across multiple virtualization platforms. This specification is recognized by INCITS (469-
2010) and ISO/IEC (17203:2011).

URI: http://dmtf.org/sites/default/files/standards/documents/DSP0243_1.1.0.pdf
Version 2.1.1 of this document extends the format definition to support network ports, scaling at
deployment time, basic placement policies, encryption of OVF packages, runtime disk sharing,
advanced boot order, advanced data transfer to Guest OS, improved Internationalization – I18N,
improved HASH and CIM schema.
URI: http://dmtf.org/sites/default/files/standards/documents/DSP0243_2.1.1.pdf
• DSP0262: The "Cloud Auditing Data Federation (CADF) Data Format and Interface Definitions
Specification" document specifies a data model and associated schema definitions to format event
records, logs and reports that can be federated and are suitable for audit purposes.
URI: http://dmtf.org/sites/default/files/standards/documents/DSP0262_1.0.0.pdf
• DSP0263: The "Cloud Infrastructure Management Interface (CIMI) Model and REST Interface over
HTTP" specifies the model and protocol for management interactions between the provider of a
cloud infrastructure as a service (IaaS) and a consumer of that service. The model includes machines,
storage and networks within the IaaS provider which the IaaS consumer can perform life cycle
management.
URI: http://dmtf.org/sites/default/files/standards/documents/DSP0263_1.0.1.pdf
• DSP0264: The "Cloud Infrastructure Management Interface - Common Information Model" specifies
a CIM representation for the logical model contained in the "Cloud Infrastructure Management
Interface" document (DSP0263).
URI: http://dmtf.org/sites/default/files/standards/documents/DSP0264_1.0.0.pdf

• DSP0266: The "Redfish Scalable Platform Management API Specification" document specifies
RESTful interface semantics to access the data defined in model format to perform out-of-band
systems management. It is suitable for a wide range of servers, from standalone servers to rack
mount and bladed environments but scales equally well for large-scale cloud environments.
URI: http://www.dmtf.org/sites/default/files/standards/documents/DSP0266_1.1.0.pdf

411
