I.3 Living list document #3 - Common architecture framework proposed in
[b-ITU-T IMT-I-250]
NOTE – Following is the proposed text for IMT-2020 network architecture framework in [b-ITU-T IMT-I-250].
For more details of the proposal, refer to [b-ITU-T IMT-I-250].

I.3.1 IMT 2020 Global Pictures - Logical and Physical Architectures - Revisited
The following figure summarizes the IMT-2020 Network Elements abstractions in the form of a high-level
logical design and applicable plane specific functionality.

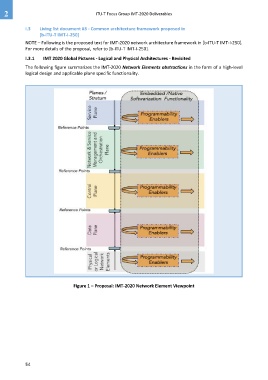

Figure 1 – Proposal: IMT-2020 Network Element Viewpoint
