Page 296 - Unleashing the potenti al of the Internet of Things

3 Unleashing the potential of the Internet of Things

In line with [ITU-T Y.2240], the MOC capabilities also interact with NGN capabilities
[ITU-T Y.2201], IT capabilities or Internet capabilities.
NOTE 1 – The MOC capabilities in the NGN domain are positioned inside the NGN service stratum
[ITU-T Y.2012].
NOTE 2 – Other [ITU-T Y.2240] capabilities are not precluded to be part of, or adapted as, MOC
capabilities in the NGN domain as shown in Figure 11-2.

Accounting and charging Access control

Service dispatcher Content management

Application provisioning Context management

MOC resource registry MOC resource repository

MOC resource manager

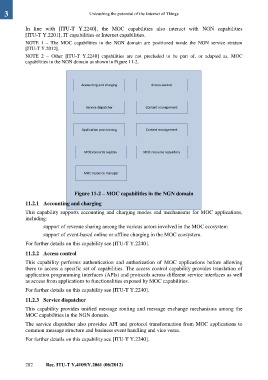

Figure 11-2 – MOC capabilities in the NGN domain
11.2.1 Accounting and charging

This capability supports accounting and charging modes and mechanisms for MOC applications,
including:
– support of revenue sharing among the various actors involved in the MOC ecosystem
– support of event-based online or offline charging in the MOC ecosystem.
For further details on this capability see [ITU-T Y.2240].

11.2.2 Access control

This capability performs authentication and authorization of MOC applications before allowing
them to access a specific set of capabilities. The access control capability provides translation of
application programming interfaces (APIs) and protocols across different service interfaces as well
as access from applications to functionalities exposed by MOC capabilities.
For further details on this capability see [ITU-T Y.2240].

11.2.3 Service dispatcher

This capability provides unified message routing and message exchange mechanisms among the
MOC capabilities in the NGN domain.

The service dispatcher also provides API and protocol transformation from MOC applications to
common message structure and business event handling and vice versa.

For further details on this capability see [ITU-T Y.2240].

282 Rec. ITU-T Y.4109/Y.2061 (06/2012)
