HCM4A Mobile Service - Compilation Guide

This guide walks you through setting up the Ultimate++ (UPP) development environment and compiling the DLL_Mobile.dll library and the HCM4AMobileService.exe application using TheIDE.

1. Installing UPP

1.1 Download UPP

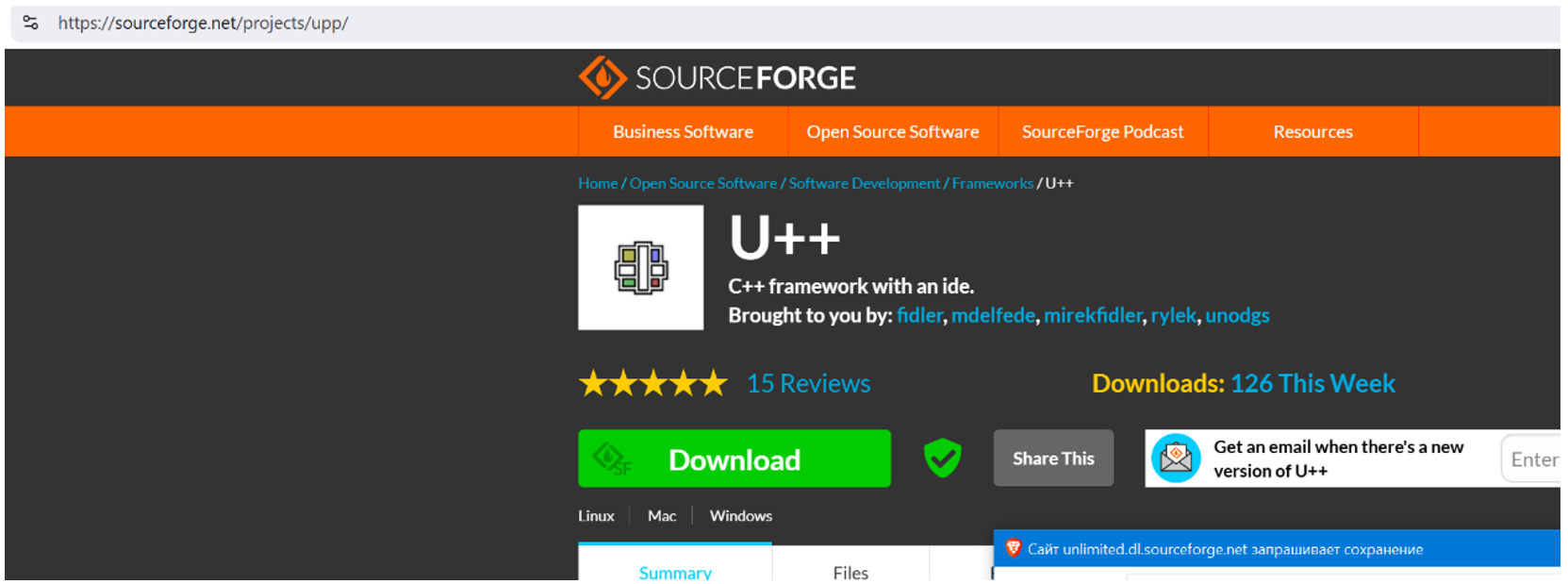

Download the UPP archive from https://sourceforge.net/projects/upp/.

UPP Download Page

1.2 Unpack UPP Archive

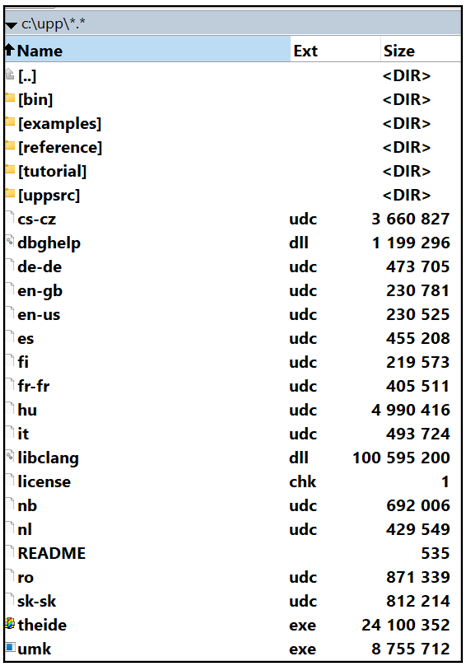

Unpack the upp-archive to any location on your hard drive, but placement as a root folder is recommended (e.g., C:\upp).

UPP Unpacked Folder

1.3 Start TheIDE

Start the theide.exe file in the UPP folder. Agree to execute if Windows Defender requests permission to execute a file from an unknown source. This will prompt a copyright dialog:

TheIDE Copyright Dialog

Press «Yes» and wait until the initiation of UPP is complete. This will result in the following dialog window appearing. Press “Cancel”:

UPP Initialization Dialog

1.5 Complete UPP Setup

Pressing “Cancel” will close the UPP software and complete all preparations for further compilation of the software.

2. Compiling DLL_Mobile.dll

2.1 Create Project Directory

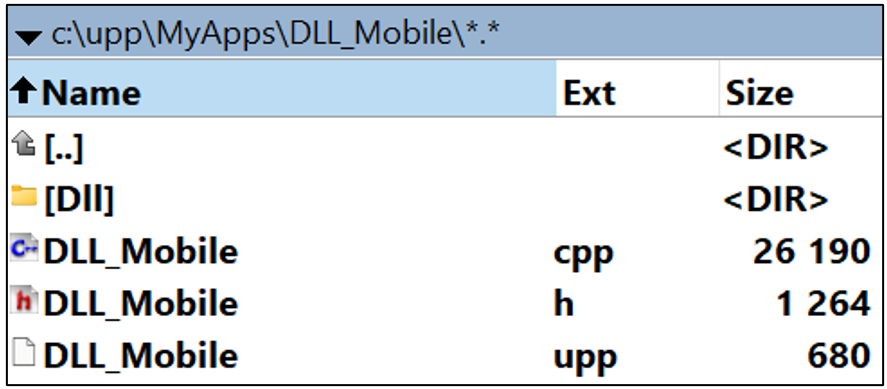

Inside the UPP folder, create a new folder MyApps, followed by an embedded folder DLL_Mobile. Place the DLL library source code in that final folder:

DLL_Mobile Project Directory

2.2 Open Project in TheIDE

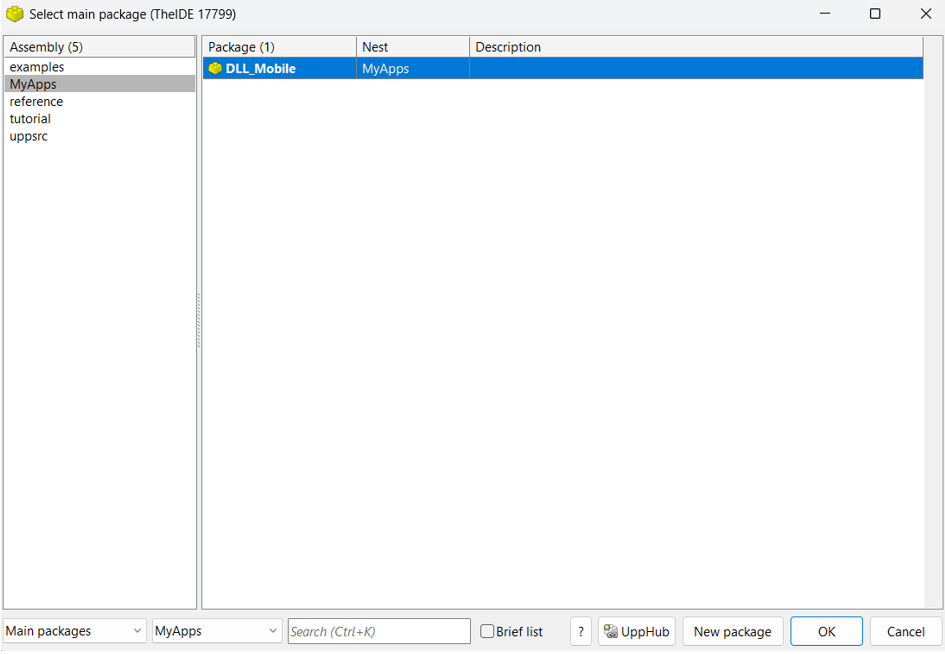

To compile (build) the DLL-file, start theide.exe, select the assembly from the MyApps folder for DLL_Mobile.dll, and press the OK button to open this project:

Open DLL_Mobile Project

2.3 Build DLL

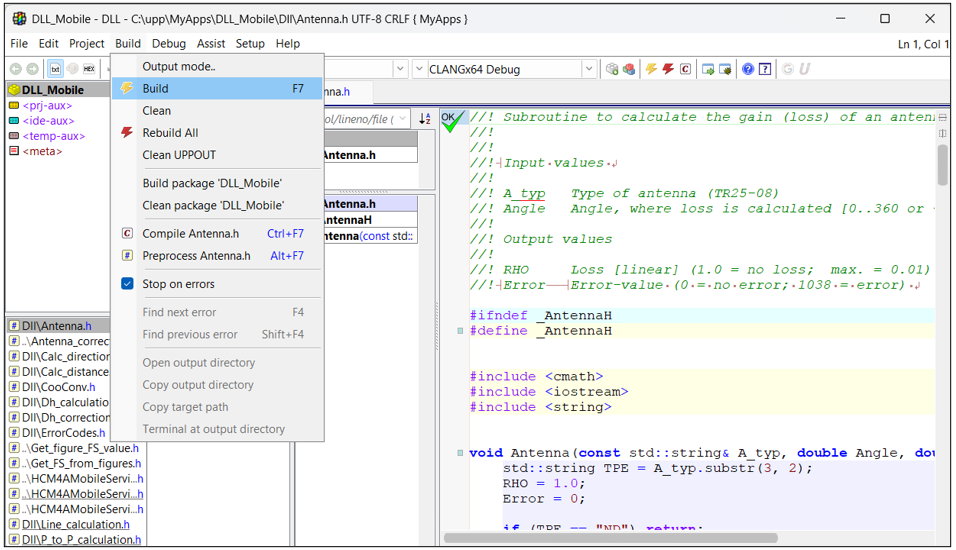

In the interface of the UPP framework, open the “Build” menu and press the “Build” command.

Build DLL Command

2.4 Monitor Compilation

After a few seconds, the DLL-file will be compiled. An IDE-console string will show up at the bottom of the window to indicate progress and, finally, the folder with the output:

DLL Compilation Progress

2.5 Finalize DLL Compilation

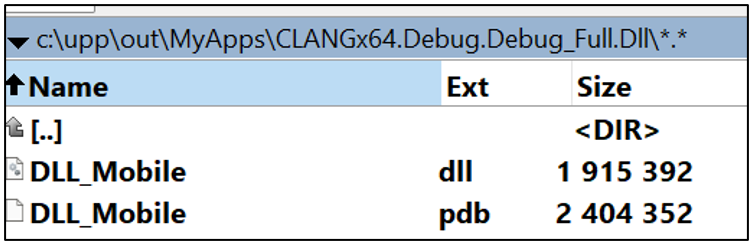

Close the UPP-framework program. The DLL_Mobile.dll file is compiled and can be used further with the HCM4AMobileService program (only the DLL-file is needed for further work).

Compiled DLL_Mobile.dll

3. Compiling HCM4AMobileService.exe

3.1 Create GUI Project Directory

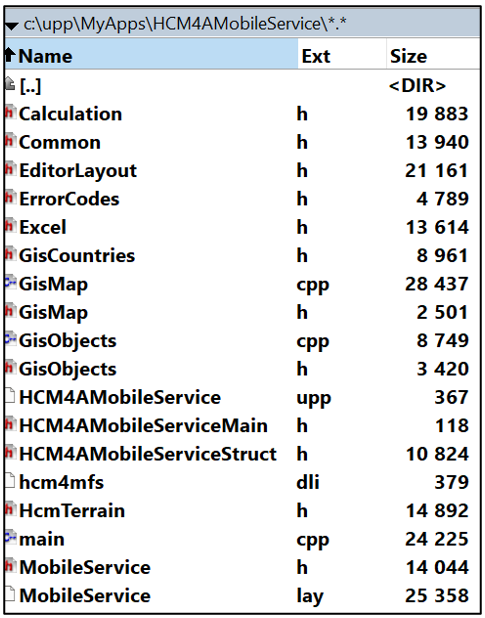

Similar to step 2.1 above, create a folder inside MyApps to place the source code of the GUI program (e.g., c:\upp\MyApps\HCM4AMobileService\). Place the GUI source code in that final folder:

GUI Project Directory

3.2 Open GUI Project in TheIDE

To compile (build) HCM4AMobileService, start theide.exe, select the assembly from the MyApps folder for HCM4AMobileService, and press the OK button to open this project:

Open GUI Project

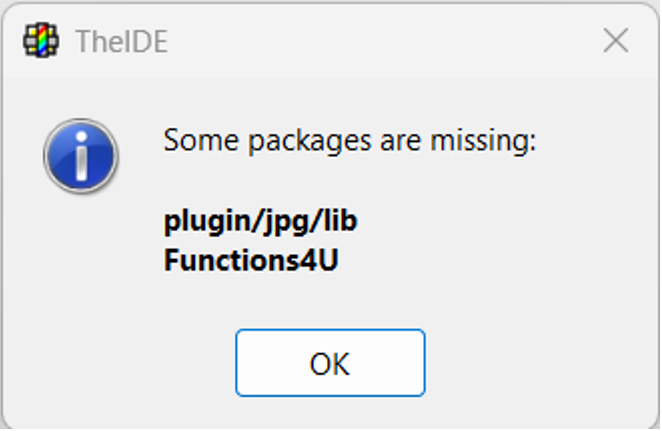

3.3 Initial Compilation Attempt (Expected Failure)

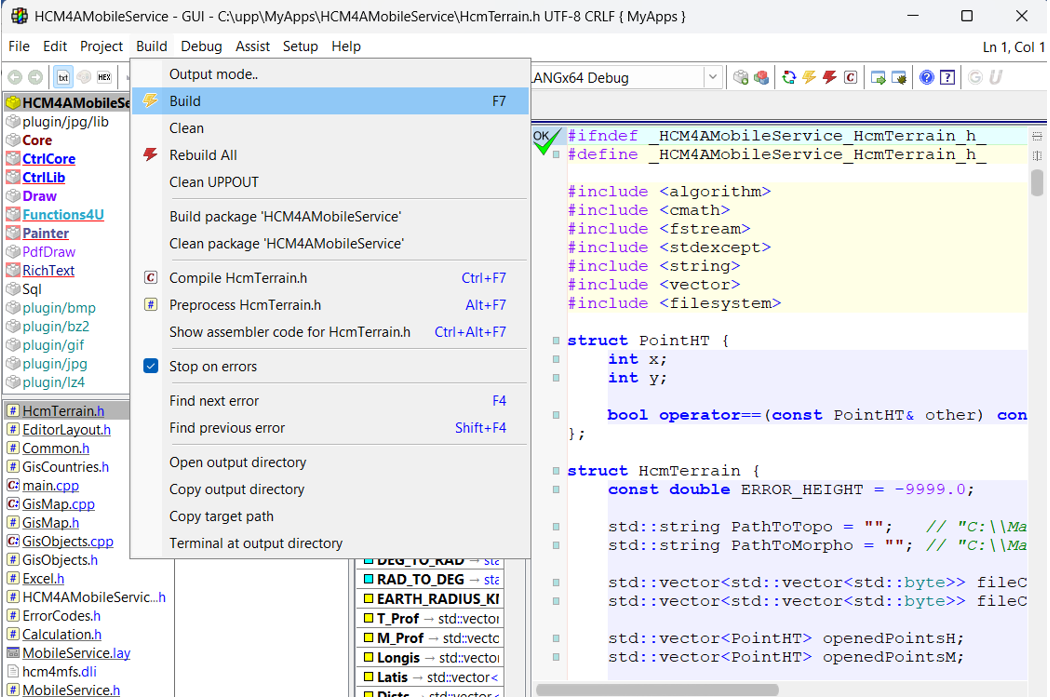

The first attempt to compile the HCM4A mobile service GUI will likely fail due to a lack of additional UPP components not present in the general installation.

Initial Compilation Failure Initial Compilation Failure

3.4 Install Functions4U Unit

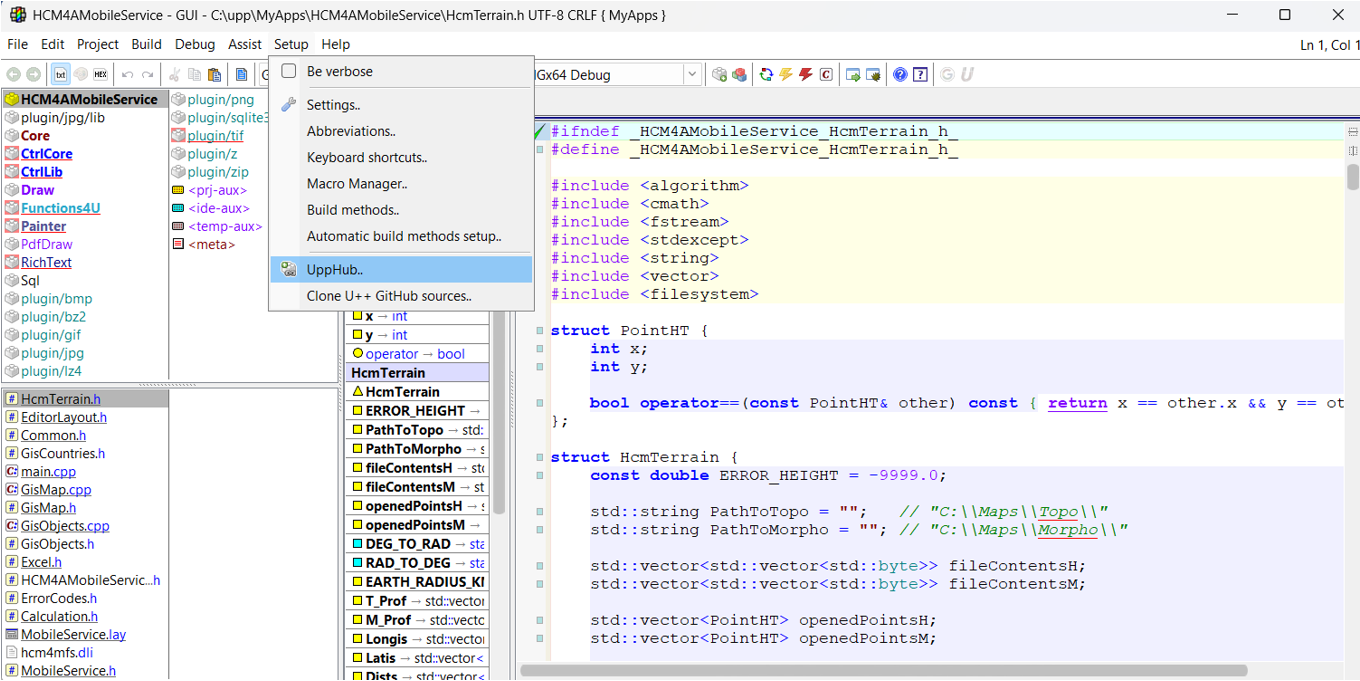

The Functions4U unit needs to be installed. Missing plugin/jpg/lib can be ignored as it will be automatically linked by the UPP framework GUI without any additional actions from the user. To install the Functions4U unit, go to the Setup menu and switch to UPP hub:

UPP Hub Setup Menu

3.5 Search and Install Functions4U

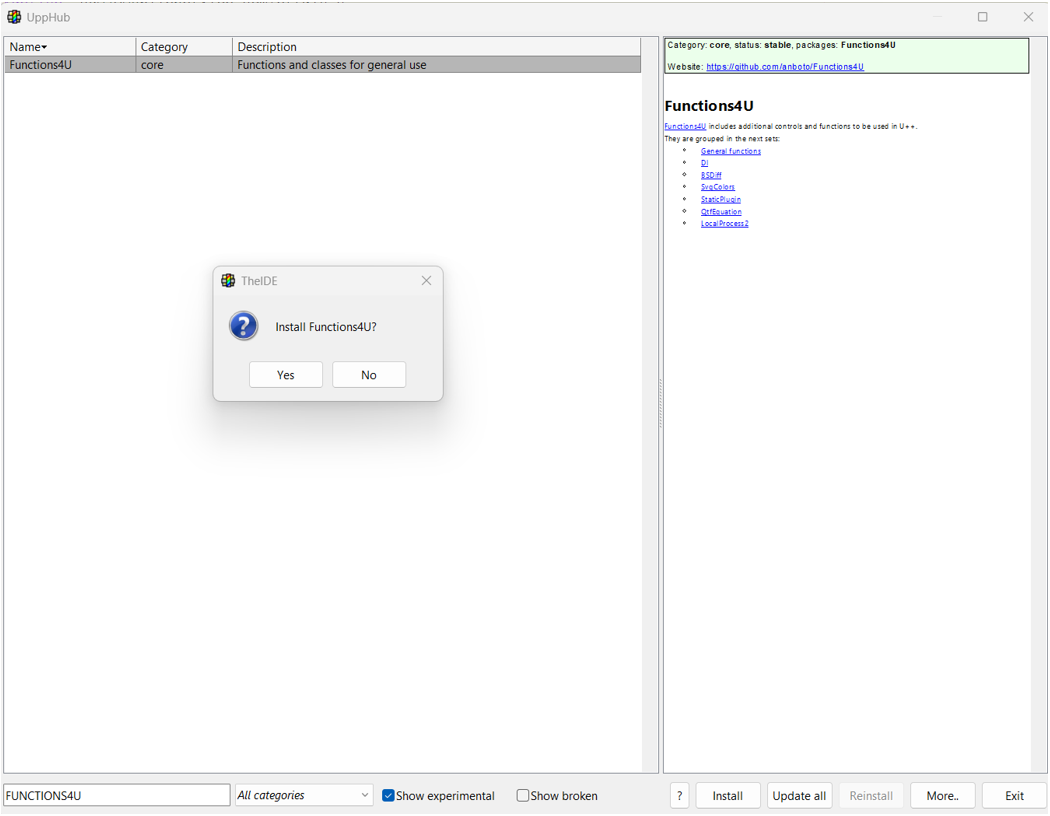

At the bottom of the UPP Hub window, enter “FUNCTIONS4U” to automatically search for the missing unit. Then select and install that unit:

Search Functions4U in UPP Hub

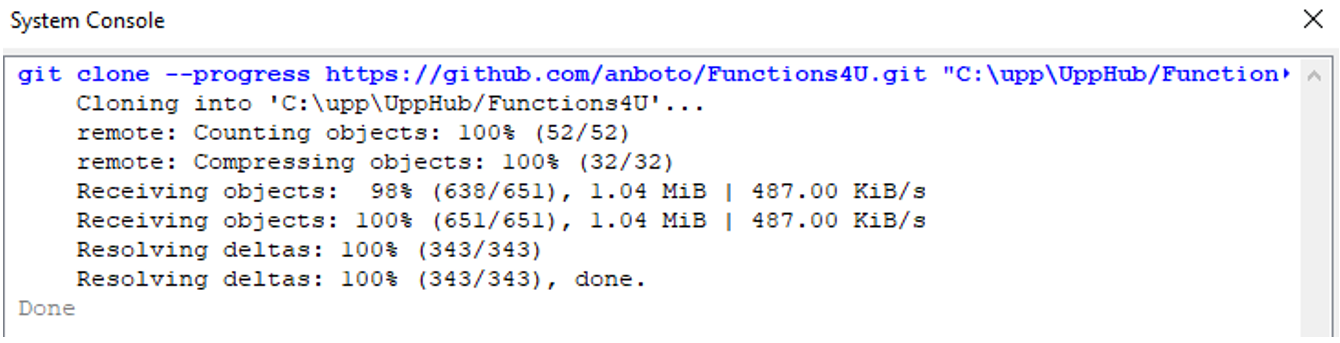

This will trigger an installation progress window:

Functions4U Installation Progress

3.6 Retry GUI Compilation

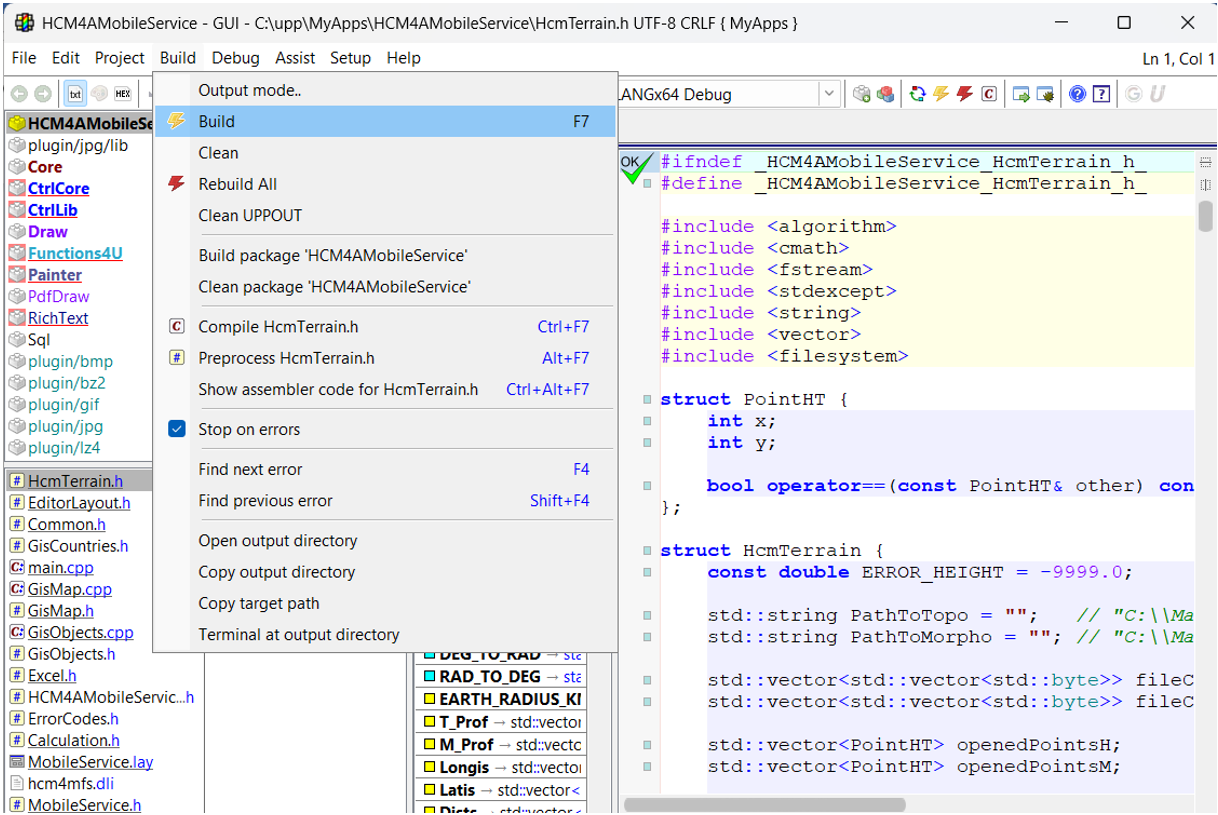

Repeat the attempt to compile the HCM4A mobile service GUI. In the interface of the UPP framework, open the “Build” menu and press the “Build” command. Ignore missing plugin/jpg/lib if you are reopening the MyApps project.

Retry Build GUI Command

3.7 Monitor GUI Compilation

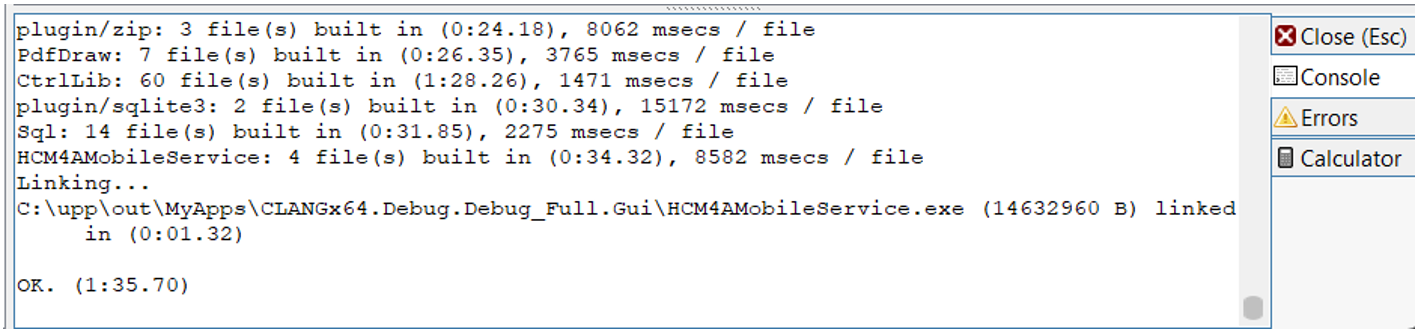

After a few minutes, HCM4AMobileService.exe will be compiled. An IDE-console string will show up at the bottom of the window to indicate progress and, finally, the folder with the output. Ignore warnings at the end of the compilation process (warnings do not affect proper compilation) and switch to the console to see the output file:

GUI Compilation Progress

3.8 Finalize GUI Compilation

Close the UPP-framework program. The HCM4AMobileService.exe file is compiled and can be used further with the DLL-library (only the EXE-file output is needed for further work).

4. Combining into the Final Software

4.1 Place DLL and EXE Files

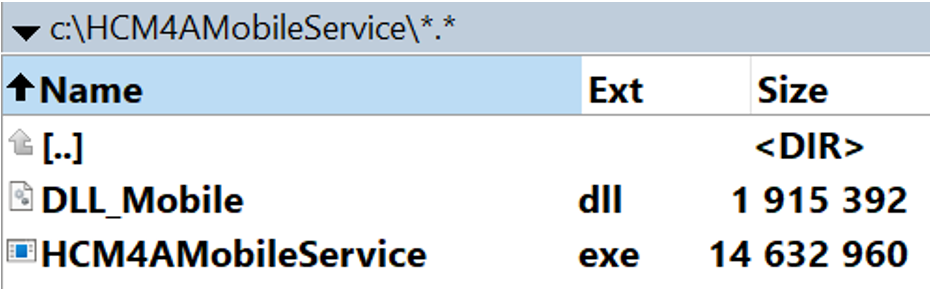

Place the DLL-file and EXE-file in a new folder (e.g., C:\HCM4AMobileService\).

Combined DLL and EXE

4.2 Create "Files" Folder

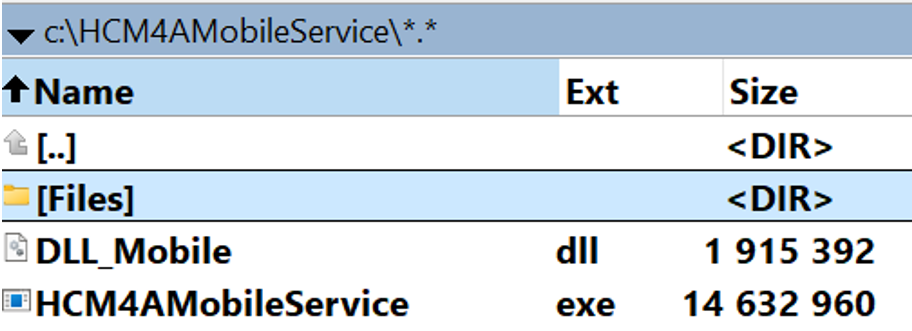

Create a new folder Files inside the HCM4AMobileService folder.

Files Folder Created

4.3 Create ListOfCountries.txt

Inside the Files folder, create a text file named ListOfCountries.txt and copy the following contents into this file. This file is used to link country maps and the GUI and can be used to add new countries in the future without recompilation of the GUI.

AFS
ZA1
AGL
AO1
ALG
BDI
BEN
BFA
BOT
CAF
CME
COD
COG
COM
CPV
CTI
DJI
EGY
ERI
ETH
GAB
GHA
GMB
GNB
GNE
GQ1
GUI
KEN
LBR
LBY
LSO
MAU
MDG
MLI
MOZ
MRC
MTN
MWI
NGR
NIG
NMB
RRW
SDN
SEN
SEY
SOM
SRL
SSD
STP
SWZ
TCD
TGO
TUN
TZA
TZ1
UGA
ZMB
ZWE

List of Countries

4.4 Create “Stations”, “RefList” and “TestList” folders

Final step includes creating a number of other folders inside “HCM4AMobileService” folder (or any other name for main folder at user’s choice). First create a new folder “Stations” inside “HCM4AMobileService” folder

List of Countries

And then create to subfolders “RefList” and “TestList”

4.5 Starting the program

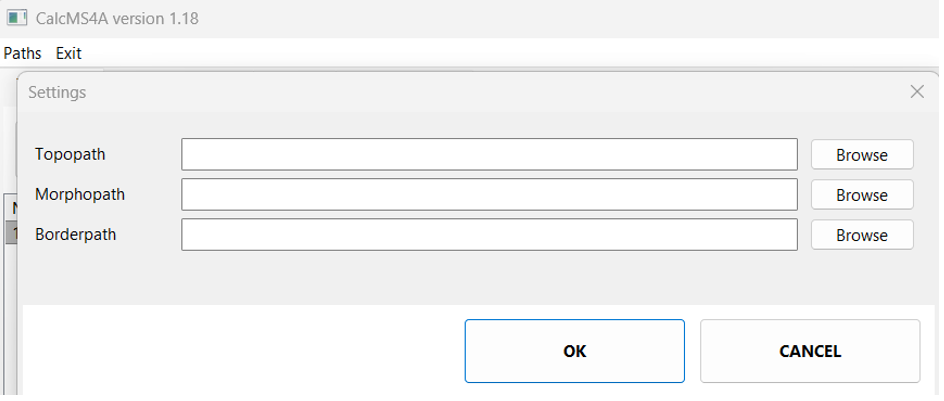

The program is ready to start. The first action after the start would be to download mapping data and provide path for it in “Paths” menu:

List of Countries List of Countries
